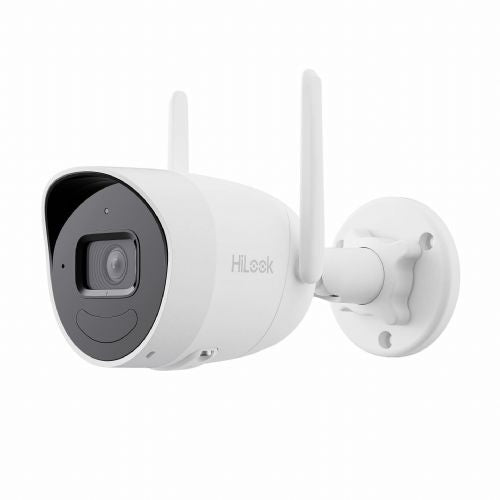

The HiLook IP IPC-B140HA-D/W(W) wireless outdoor camera supports cable-free transmission via Wi-Fi . With a resolution of 4 MP , it provides very detailed images, and thanks to the EXIR 2.0 infrared technology , night vision (up to 30 m) is also supported.

The HiLook IP camera IPC-B140HA-D/W(W) features 4MP recording, Wi-Fi connection, two-way audio and IR night vision up to 30 m. Designed for outdoor use (IP66), supports microSD up to 512 GB and allows remote monitoring via the Hik-Connect application.

• High-quality imaging with 4 MP resolution
• Wi-Fi connection and easy setup
• Provides real-time security through built-in two-way audio
• EXIR 2.0, advanced infrared technology with long IR range
• Support for built-in memory up to 512 GB (SD card slot)
• Water and dust resistance (IP66)
• Hik-Connect cloud service and application for remote management and viewing of devices

Technical features:

Camera

Image sensor: 1/2.9-inch progressive scan CMOS

Maximum resolution: 2560 × 1440

Min. illumination: Color: 0.01 lux at (F1.6, AGC on), B/W: 0.005 lux at (F1.6, AGC on), B/W: 0 lux with IR

Shutter speed: 1/25 s to 1/10000 s

Day and night: IR-cut filter

Angle adjustment: Angle: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lentil

Focal length and field of view:

2.8 mm, horizontal field of view 91°, vertical field of view 49°, diagonal field of view 108°

Aperture: F1.6

Lens type: Fixed

Lens mount: M12

Depth of field: 2.8 mm: 1 m to ∞

DORY

2.8 mm, W: 63 m, H: 25 m, L: 12 m, I: 6 m

Lighting

Additional light type: IR

IR wavelength: 850 nm

Additional light range: Up to 30 m

Video

50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Undercurrent:

50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)

60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)

Video compression: Main stream: H.265/H.264,

Substream: H.265/H.264

Video bitrate

256 Kbps to 2 Mbps

Main profile: Bitrate control

Continuous billing (CBR), variable billing (VBR)

Sound

Audio compression: G.711, AAC-LC

Audio bit rate: 64 kbps (G.711ulaw/G.711alaw), 16 to 64 kbps (AAC-LC)

Audio sampling frequency: 8 kHz, 16 kHz

Environmental noise filtering: Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS

Simultaneous live view: Up to 4 channels

APIs:

ONVIF, SDK

Wireless network

Transfer speed: 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps

Wi-Fi protocol: 802.11n: OFDM, 802.11b: DSSS, 802.11g: OFDM

Frequency range: 2.412 GHz to 2.472 GHz

Channel bandwidth: 20 MHz

Modulation: 802.11b: CCK, QPSK, BPSK,,802.11g: OFDM,,802.11n: OFDM

Wireless range: Up to 120 m

(Performance varies depending on actual environment)

Interface

Built-in microphone: Yes

Built-in speaker: Yes

MicroSD Storage: Built-in memory card slot, supports microSD/microSDHC/microSDXC cards, up to 512 GB

Ethernet interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic event: Motion detection (support triggering alarm based on specific target type (human and vehicle)), exception

Connection

Upload to memory card, control center notification, capture trigger, sound alert, auto tracking Lite

General

Power supply: 12 VDC ± 25%, 0.58 A, max. 7 W, coaxial plug Ø5.5 mm, reverse polarity protection, switching adapter included in the package.

Language: English

Storage conditions: -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)

Start-up and operating conditions

-30°C to 60°C, Humidity 95% or less (non-condensing)

Material: Front cover: metal, back cover: plastic

Dimension: 175.6mm x 73mm x 89.1mm

Package Dimension: 260mm × 125mm × 125mm

Weight: Approximately 345g

With package weight: About 635g

Protection: IP66: IEC 60529-2013

Package includes: 1x HiLook IP camera 4.0MP wireless outdoor IPC-B140HA-D/W(W), 1x Power supply, 1x Mounting kit, 1x Instructions

NOTE: The camera is controlled exclusively via the Hik Connect mobile app or HiLookVision in the cloud - it does not have a local web interface.

Warranty: 12 months

Dimension

175.6mm × 73mm × 89.1mm

Package dimension

260mm × 125mm × 125mm

Weight: Approximately 345g

With package weight: About 635g

Manufacturer
HiLook
Hangzhou Hikvision Technology Co.,
Ltd.,700 Dongliu Road,Binjiang, Area, Hangzhou,Zhejiang, China
info@hikvision.com

Data of the responsible person in the EU:
HiLook
Hikvision Europe
Dirk Storklaan 3, 2132 PX Hoofddorp, The Netherlands
sales.eu@hikvision.com

Same summary

The HiLook IP IPC-B140HA-D/W(W) wireless outdoor camera is suitable for users who want simple video surveillance of outdoor areas without complicated wiring. With 4 MP resolution, it provides a good overview and recognition of what is happening in front of the house, on the driveway or in the yard, especially where electrical wiring is already present. The WiFi connection makes installation flexible, but it is important that a stable wireless network is provided at the place of use. The camera is less suitable for users who expect very advanced surveillance (e.g. longer night range or professional integration into larger systems).

Recommendation source: Enaa guides and team experience.

User view

This camera is often the choice for individuals or families who want an extra sense of security around their home. It is especially useful for monitoring a driveway, entrance, garage or garden, where there is no need for advanced features or complex installation. In everyday use, it is useful for those who appreciate quick visibility of what is happening, remote access to the image and easy viewing via phone or computer.

Many users trust the HiLook brand because it offers a balanced relationship between affordability, practicality, and functionality in the home video surveillance class.

Why buy at Enaa

At Enaa, you can expect a clear presentation of key features, professional technical support, and a wide selection of products from the world of security technology, making it easier to compare and choose the most suitable product based on the needs of your home.

Answers to frequently asked questions

What surfaces is this camera best suited for?

The camera is most useful for outdoor areas such as yards, driveways, or garages where there is access to electricity and a stable WiFi signal.

Can I use the camera indoors?

Although the primary purpose is outdoor use, the camera is also suitable for indoor use if you need higher resolution and surveillance of larger spaces.

What does it mean that the camera works via WiFi?

The camera connects wirelessly to the router via a WiFi network, which allows for easy installation without additional wiring, but it is recommended to check the signal strength and quality at the installation site.

Is this model suitable for remote locations without a power outlet?

The camera requires a classic electrical connection, so without a power source it is not suitable for completely remote or unelectrified locations.

What should I look for when choosing a home video surveillance camera?

It is important to coordinate the resolution, connection method and installation location; for larger yards and higher requirements for user visibility, we recommend at least 4 MP resolution and a stable WiFi connection.
