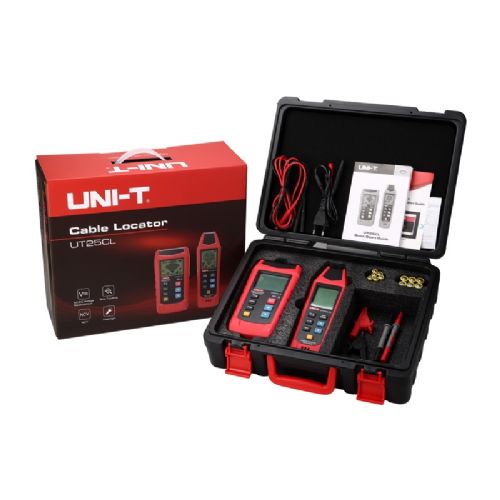

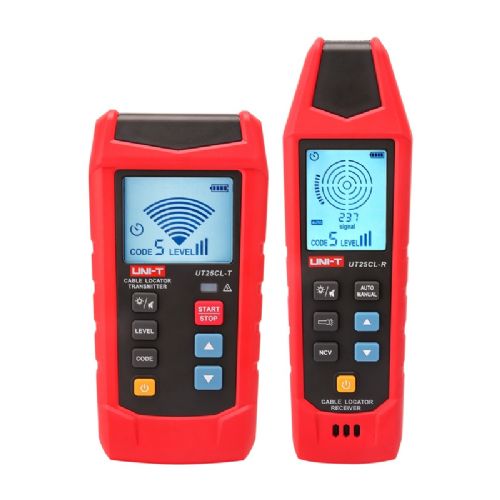

Wire detector UNI-T UT25CL
- Regular price
- €141,45
- Sale price
- €141,45
- Regular price
-
- Unit price
- per
Couldn't load pickup availability
Čas dostave
Izdelek bomo predvidoma poslali čez: 5 dni






Uni-T UT25CL wire detector – safe and easy in-wall monitoring
- Easy to use for precise wire location
- Increases safety when drilling into walls
- Compact design for easier handling
- Suitable for home and occasional use
Wire detector UNI-T UT25CL
The UNI-T UT25CL cable detector combines the functionality of a transmitter and receiver, ensuring accurate cable location and diagnosing installation errors. The device allows you to detect cables in walls, find breaks and shorts, trace underground cables, and locate fuses and related devices. With the ability to operate up to 8 transmitters with a single receiver and features such as sensitivity adjustment, built-in flashlight and automatic display backlight, the UT25CL significantly improves work in both residential and commercial projects.

Versatility of use in all conditions
The UT25CL is ideal for a variety of installation and service jobs. The device not only detects wires in walls, but also accurately tracks breaks and shorts in metal floor installations. Due to its ability to track metal water and heating pipes, the locator is also used in plumbing and repair work, where accuracy and safety are crucial.

Smart features for even more comfort
The UT25CL detector is equipped with an automatic or manual sensitivity adjustment system (in three levels), which allows you to adapt the device to the specific task and environmental conditions. Easy-to-read LED indicators and audible signaling allow for quick interpretation of results, while the built-in flashlight and display backlight provide comfort even in poorly lit areas. As an additional convenience, the unit's automatic shutdown function extends the device's service life.

Certified safety and reliability
The UT25CL can detect live wires up to 480V (AC/DC), making it a reliable choice for both low and high voltage work. It is CE and RoHS certified, confirming its high-quality workmanship and compliance with current safety standards. It is the ideal tool for professionals who value efficiency, accuracy and safe work.

| Manufacturer | UNI-T |
|---|---|
| Model | UT25CL |
| Main functions | Detecting wires in the wall, locating broken wires and short circuits, tracing underground cables, locating fuses and devices connected to fuses, identifying short circuits and breaks in metal underfloor heating systems, tracing metal water and heating pipes. |
| Sensitivity adjustment | Supported (receiver: 3 levels; transmitter: 9 levels) |
| Flashlight | Built-in |
| Lighting | Built-in |
| Manual sensitivity adjustment | Supported |
| Overvoltage category | CAT III 480 V |
| Pollution class | 2 |
| Protection class | IP: IP54 |
| Certificates | CE, RoHS |

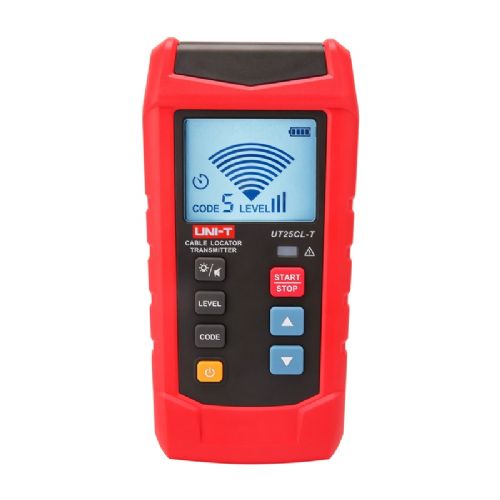

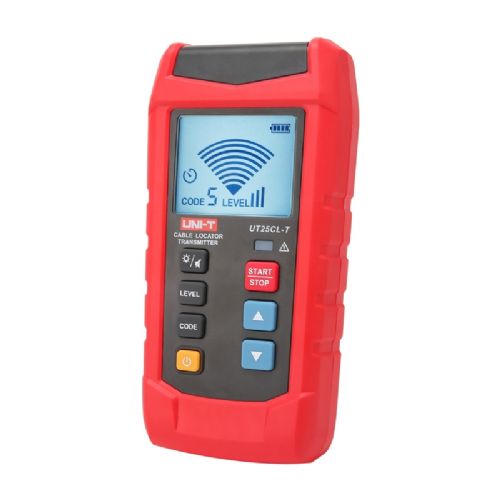

Transmitter
| Output signal | 33 kHz |
|---|---|
| Phase wire voltage range | AC/DC 8-480 V; AC: 50/60 Hz, accuracy 2.5% ±3°. |
| Display | Segmented LCD (TN; translucent) |
| Backlight | Built-in |
| Code value | 0, 1, 2, 3, 4, 5, 6, 7 |
| Signal level | Three levels (1, 2, 3) |
| Single-pole test | Supported (phase wire test, max. voltage 480 V) |
| Bipolar test | Supported (phase wire test, max. voltage 480 V) |
| LED indicator ELV | If the input voltage exceeds 25V, the ELV LED will light up; as the voltage increases, the brightness of the ELV LED will increase; otherwise, the ELV LED will be dimmed or not illuminated. |

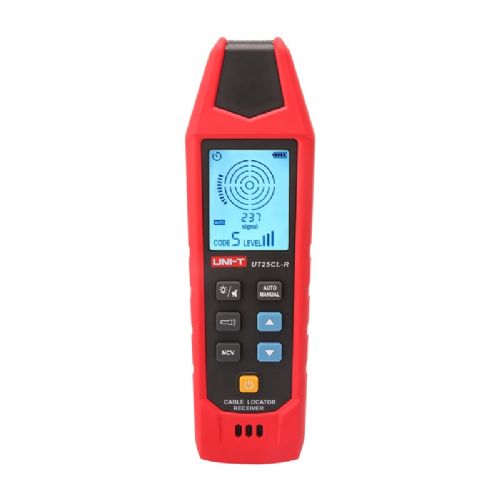

Receiver
| Receiving frequency | 33 kHz |
|---|---|
| Tracking depth | Unipolar mode: approx. 0-2.5 m (single circuit: 2.5 m); Bipolar mode: approx. 0-0.5 m |
| NCV voltage range | 80V–1000V, 50Hz/60Hz |
| Voltage detection depth | approximately 0–0.4 m |
| Code value | 0, 1, 2, 3, 4, 5, 6, 7 |
| Signal level | Three levels (1, 2, 3) |
| Support for multiple transmitters | Up to 8 units |
| Display | Segmented LCD (TN; translucent) |
Warranty: 24 months
The text is machine translated.
Same summary
The UNI-T UT25CL wire detector is primarily useful for users who carry out installation or repairs at home, as well as for occasional craftsmen in the garden and workshop. It is suitable for those cases where it is important to quickly and easily detect electrical lines or metal elements in walls, especially for smaller DIY projects or basic household repairs. The model is easy to use, but due to its basic nature, it may not be optimal for professional use in demanding or very specific conditions. Its advantage is simplicity, aimed at a wide range of consumers who want more safety and fewer surprises when drilling or renovating a room.
Recommendation source: Enaa guides and team experiences.
User view
This detector is most often used by individuals who do their own home improvement, renovate their apartment, or frequently repair furniture and walls. In practice, it comes in handy when deciding where to safely drill or hammer nails, as it detects electrical wires and metal parts in time. It is also often chosen by users who want easy prevention of damage to electrical wiring or care about their own safety at home.
Uni-T brand products are often chosen by those who value proven performance and functionality without unnecessary complications or complicated settings.
Why buy at Enaa
At Enaa, you can expect reliable advice on choosing the right tool for your needs, professional support even after purchase, and transparent access to proven brands such as Uni-T in the Garden and Tools department.
Answers to frequently asked questions
How deep does the UNI-T UT25CL wire detector detect electrical and metal wires?
The UNI-T UT25CL detector is designed to detect wires and metal objects in most typical domestic walls. For maximum accuracy, we recommend testing on a small area, as wall thickness and material can affect the result.
Do I need special skills to use this detector?
No special knowledge is required for basic use; the device is adapted to the average user, who can safely and quickly check the wall before drilling or nailing with simple steps.
Is the detector also suitable for professional use in construction?
Due to its simplicity and basic functions, it is more suitable for home or occasional use. For more demanding tasks in construction, we recommend more robust professional models.
Can the detector detect plastic pipes?
The UNI-T UT25CL is primarily intended for detecting metal and electrical conductors; it usually does not detect plastic pipes unless they are coated with a metallized material.
How should I maintain the detector for a long service life?
It is recommended to wipe it with a soft dry cloth after use and store it in a dry place, protected from moisture or dust.
Description updated: June 2026
