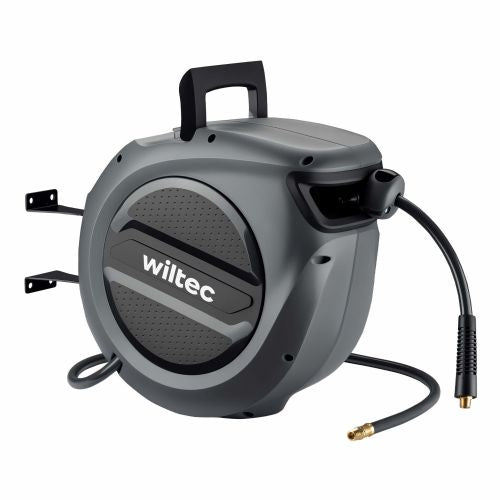

Wall-mounted compressor automatic retractable hose on reel 20m 17Bar
Are you looking for an effective solution to the clutter in your workshop? The 20-meter wall-mounted compressor automatic hose reel is a top-notch accessory that will completely change the way you work with compressed air. Forget about time-consuming manual winding, dangerous knotted hoses on the floor and constant tripping. This professional wall-mounted reel brings order, safety and maximum productivity to any workshop, garage or backyard.
With a robust design, a working pressure of up to 17 bar and exceptional flexibility, this pneumatic reel is an indispensable piece of equipment for every DIYer and professional craftsman. Increase your working radius without unnecessary compressor switching and ensure a smooth workflow.
Key benefits of using an automatic compressed air reel

Maximum safety at work: The automatic winding system ensures that the hose is safely and smoothly stored in the housing after use. This drastically reduces the risk of tripping and damage to the hose.

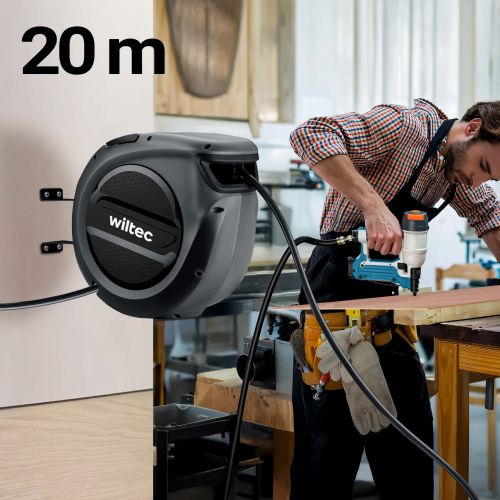

Exceptional working range: With a 20-meter compressed air hose and an additional 2-meter power connector, you will easily reach even the most remote corners of your workspace.
Full flexibility with 180° rotation: The robust wall bracket made of steel and PVC allows the reel to rotate 180 degrees. You can pull the hose in any direction without kinking or damaging the material.

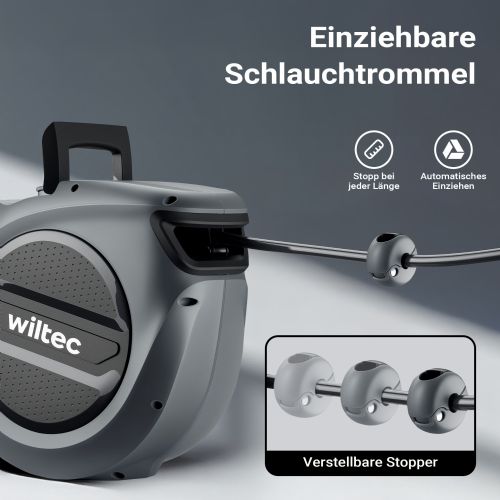

Precise length control: The adjustable locking ball (without using tools) and the reliable "click-lock" system allow you to fix the tube exactly at the desired length, preventing unwanted pulling back.
Long service life: The housing made of high-quality polypropylene (PP) protects the hose from external influences, dirt and mechanical damage, ensuring many years of trouble-free operation.

Technical features and product specifications
This Wiltec wall-mounted compressed air hose reel combines premium materials and thoughtful engineering design, suitable for demanding pneumatic applications:

Hose length: 20 meters (plus 2 meters of connection hose)
Working pressure: 17 bar
Maximum pressure (burst strength): up to 51 bar
Housing dimensions: 405 x 215 x 380 mm
Inner tube diameter (ID): 9.2 mm
Tube outer diameter (OD): 14 mm
Main material: Durable polypropylene (PP) and high-quality metal
Operating temperature range: From -5 °C to +45 °C
Color: Elegant black color that fits into any workshop
Mounting type: Simple wall mounting (mounting screws included)
Battery: Operates mechanically, no battery required

Easy installation and immediate use
Installing the wall-mounted hose reel is quick and easy. The package includes all the necessary mounting screws to securely fasten the robust bracket to the wall. Once the bracket is in place, the reel is simply snapped on and ready to connect to your compressor. Thanks to the integrated roller guide, the hose will always be pulled out and wound in smoothly, without getting stuck.
Due to its high working pressure of 17 bar and exceptional resistance (maximum pressure up to 51 bar), this pneumatic hose is ideal for driving various pneumatic tools such as screwdrivers, tire inflators, spray guns and staplers.
Frequently Asked Questions (FAQ)
1. How does the automatic winding and locking system work?
The reel is equipped with a clever "click-lock" mechanism. When you pull out the hose to the desired length, it automatically locks in place. When you want to store the hose, gently pull it forward to release the lock and the integrated spring will wind the hose back into the housing in a smooth and controlled manner. An adjustable locking ball prevents the hose from being completely retracted inside.
2. Are all mounting accessories included in the package?
Yes, the kit includes a wall-mounted reel with a 20-meter hose, a rotating wall bracket, and all the necessary screws for wall mounting. All you need to get started is your existing compressor.
3. Is the hose suitable for outdoor use in winter?
The hose and housing are designed to operate in a temperature range of -5 °C to +45 °C. The hose maintains its flexibility even at lower temperatures, but we recommend that it be protected from frost in extreme cold to ensure maximum material life.


Responsible persons:
WILTEC - WilTec Wildanger Technik GmbH Wilhelm-Lexis-Str. 8 52249 Eschweiler Germany service@wiltec.info (+49) 2403-9779770
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
A. Mounting the Reel to the Wall
• Location Selection: Choose a solid wall (concrete, brick or strong wooden beams) near your compressor. Make sure there is enough space within a 180° rotation radius for unobstructed use.
• Marking: Place the reel against the wall and mark the holes to be drilled through the mounting bracket.
• Drilling: Drill holes and insert the appropriate wall plugs.
• Mounting: Securely screw the reel to the wall with screws suitable for the load-bearing capacity and wall material (usually supplied).
B. Connection to Compressor
• Connecting Hose: The shorter hose on the reel (usually 1–2 m long) is intended for connection to the compressor outlet.
• Connection: Fit the appropriate fittings (quick couplings) to the connection hose and connect it securely to the compressor. Make sure that all connections are tight and do not leak air.
C. Use of Pipes
• Pulling out: Hold the tube by the tip and pull it out to the desired length. You will hear a mechanism that locks the tube at a certain point.
• Locked position: When the hose is at the desired length, it is ready for use.
• Automatic Rewind: To rewind, pull the hose slightly to release the locking mechanism. Then gently guide the hose so that it winds evenly and securely back onto the reel.
• Tool Connection: Connect the pneumatic tool to the tip of the hose with a quick coupling.

Useful tips for work:
• Proper Release: Always hold the tip of the hose when releasing the hose lock. If the hose rolls up uncontrollably, it may cause injury to the surroundings or even to people.
• Optimal Pressure: Check that your compressor's operating pressure is within the safe range (maximum 17 bar). Too high a pressure can damage the hose or reel.
• Maintenance: Check seals and connections regularly. If leaks occur, replace them immediately. The winding mechanism can be cleaned and lightly lubricated from time to time (according to the manufacturer's instructions).
• Cleaning: Clean the tube and housing regularly with a mild detergent and water, especially if it has been exposed to oil or chemicals.

Warnings:
• Pressure and Safety: Never exceed the maximum working pressure of 17 bar (250 PSI).
• Rewinding: Never let go of the hose while it is being rewound. Risk of kickback: Uncontrolled rewinding under the influence of a strong spring can cause injury to persons or objects.
• Damage to the hose: If the hose is visibly damaged, cut or weathered, stop using it immediately and replace it. A damaged hose poses a risk of explosion at high pressure.
• Mounting: The reel must be mounted on a sufficiently strong structure that can withstand the weight of the reel and the pulling force when pulling out and using the hose.
• Temperature: Do not expose the reel to extreme temperatures (e.g. direct heat or open flame) as this may damage the housing, barrel and spring mechanism.
• Pressurized air: Never direct the pressurized air stream towards people or animals.

Same summary

The Wiltec wall-mounted compressor automatic retractable hose with reel is a sensible choice for users looking for a permanent solution for organized hose storage at a fixed point, for example next to the house or in the garage. Automatic winding helps to quickly tidy up, which is especially practical for regular use. The 20 m hose length involves a compromise - it allows you to manage larger areas, while the plastic housing means lower weight and easier installation, although it is not the most suitable for the highest loads or very long hoses. The product is less suitable for those who need to carry it frequently or use it in multiple locations, as the wall-mounted version reduces mobility.

Recommendation source: Enaa guides and team experiences.

User view

Such a wall-mounted retractable hose is most often used in practice in home gardens, where the user wants a neat appearance and constant readiness of the hose for watering, cleaning or other everyday tasks. It is also suitable for those who value quick and effortless storage and want to prevent knotting and damage to the hose during storage. Due to its automatic winding and compact design, it is often chosen by households or individuals who have a permanently designated place for connecting water.

Users trust Wiltec brand products because they offer a balance between convenience, selected materials, and adaptability for home use.

Why buy at Enaa

At Enaa, you can always choose from proven products with professional descriptions and clear key information that makes your decision easier. For additional questions or help with product use, you can always count on the support of a team that knows the specifics of garden tools.

Answers to frequently asked questions

Is this wall-mounted reel also suitable for outdoor use in various weather conditions?

The construction and materials allow for outdoor use, but it is recommended that the pipe be protected from direct and prolonged exposure to strong sunlight or frost to maintain a longer lifespan.

Can I easily install the pipe myself or do I need professional help?

Wall mounting is designed for the user and can usually be done without a professional, but basic tools and a suitable mounting surface are required.

Is a 20-meter-long hose enough for the average home garden?

A length of 20 m is usually sufficient for most average gardens, but it is recommended to first measure the distance of all desired watering points relative to the location of the reel installation.

What to do if the hose becomes difficult to wind or gets stuck?

It is recommended to regularly clean the reel and hose and check that there are no leaves or other dirt in the winding mechanism that may hinder operation. In case of problems, it is also useful to check the tension of the return spring in the device itself.

Is the product suitable for use with a compressor or only for water?

The compressor hose is designed primarily for use with compressed air, but can also be used for water if the pressure is within the product specification; it is recommended to check compatibility with your equipment beforehand.
