The Ubiquiti UNVR-Instant-Kit video surveillance system includes 4× G5 Turret 4.0 MP cameras, an NVR recorder with 1 TB HDD, IR night vision 30 m, smart detection and IP66 protection.

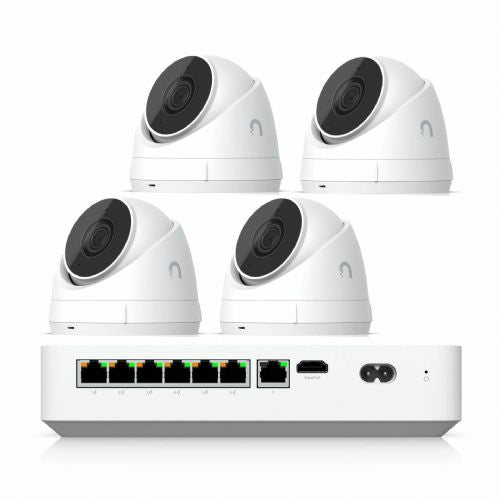

The Ubiquiti UNVR-Instant-Kit is a compact NVR video surveillance kit that includes 1 UniFi Protect NVR Instant recorder, 4x G5 Turret Ultra cameras with 4.0 MP resolution and 1 TB HDD for storage. The kit offers easy installation, centralized storage of footage and reliable 24/7 monitoring.

The Ubiquiti UNVR-Instant-Kit is a powerful Network Video Recorder that allows you to manage up to 15 cameras (8× 2K and 6× 4K). It is equipped with a quad-core ARM Cortex-A55 processor and 4 GB of memory for fast data processing. The system includes a 3.5" 1 TB hard drive and provides PoE connections. The kit includes G5 Turret Ultra cameras with IR night vision up to 30 m, IP66 protection and smart detection of people, vehicles and animals. Compact, with the option of wall or DIN rail mounting, and certifications, including NDAA, ensure reliable and secure video surveillance.

TECHNICAL FEATURES OF THE RECORDER:

DIMENSIONS AND SHAPE

- Dimensions: 220 x 220 x 47 mm
- Design: compact desktop
- Weight: 1.04 kg
- Housing material: polycarbonate
- Mounting material: polycarbonate
- Mounting: wall, Din rail (included)
- Display: 1.14" LCD

MANAGEMENT AND APPLICATION

- UniFi Application Suite: Protect, Access
- Camera management:
up to 15 HD
8x 2K
6x 4K
- Port support: yes
- Control via Ethernet and Bluetooth

STORAGE AND DATA

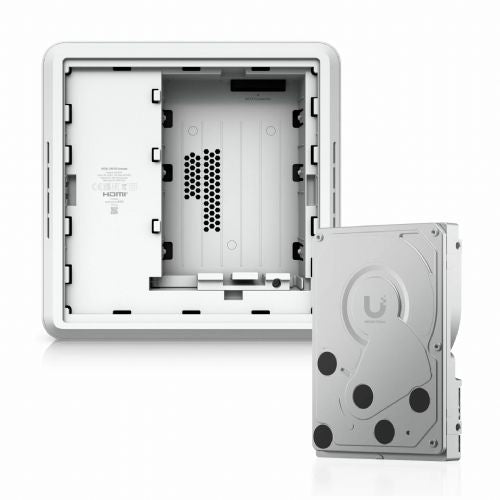

- Drive capacity: 1× 3.5" HDD 1TB
- Maximum drive power consumption: 11 W
- Data protection: yes
- Vantage Point: yes

NETWORK AND CONNECTIVITY

- 1× GbE RJ45 uplink port
- 6× GbE PoE RJ45 downlink ports
- 1× HDMI port (Viewport)
- PoE budget: 40 W
- Max. PoE power per port: 15.4 W
- PoE voltage: 44-57V

MACHINERY

- Processor: Quad-core ARM Cortex-A55 @ 1.7 GHz
- Memory: 4GB
- Maximum power consumption: 9 W
- Power supply: AC/DC, internal, 60 W, 100–240 V AC, 1.5 A, 50/60 Hz

PROTECTION AND OPERATION

- Operating temperature: 0 to 40° C
- Ambient humidity: 5 to 95% non-condensing
- NDAA compliance: yes
- Certificates: FCC, IC, CE, Electrical Safety

LED INDICATORS

- Ethernet
- PoE

CAMERA

Ubiquiti Unifi 4.0MP UVC-G5-Turret-Ultra is a high-quality PoE surveillance camera with 2K (4MP) resolution and an ultra-wide angle of 102.4° for wide coverage. With exceptional long-range night vision, it provides effective surveillance in the dark up to 30m. Easy installation with power supply via PoE, suitable for outdoor use.

2K (4MP) video resolution

Extremely wide viewing angle (102.4°)

30m IR night vision

AI event detection

Record audio with the built-in microphone

Connect and power using PoE

Weather resistant

Technical characteristics of the cameras:

Sensor: 1/2.4" CMOS

Lens: Fixed focal length

Viewing angle: H: 102.4°, V: 54.9°, D: 120.6°

Night mode: Built-in IR LED illumination and IR cut filter

Resolution: 4MP 2688 x 1512 (16:9)

Max frame rate: 30 FPS

Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, motion NR, masking, text overlay

Microphone: Yes (can be disabled)

System

Processor: Arm® Cortex®-A7 dual-core chip

Network interface: 10/100 MbE RJ45 port

Max. power consumption: 4W

Power supply method: PoE

Supported voltage range: 37–57 V DC

LED: R/G/BW

Button: Factory reset

Mounting: Surface mounting

Operating ambient temperature: -30 to 50 °C (-22 to 122 °F)

Operating ambient humidity: 0 to 90% non-condensing

Certifications: FCC, IC, CE

Mechanical properties:

Dimensions: Ø90 x 71.2 mm

Weight: 330g

Housing material: Aluminum alloy, UV-stabilized polycarbonate

Weather resistance: IP66

Resistance: IK04

Cable sheath housing dimensions: Ø20 x 70.6 mm (0.8 x 2.8")

Cable sheath housing materials: Thermoplastic elastomer, polycarbonate, silicone rubber

Cable length: 30 cm (1 foot)

Cable diameter: 5 mm (0.2")

Cable sheath material: Polycarbonate

Cable connector type: RJ45

Color: White

PACKAGE INCLUDES: 1x Ubiquiti video surveillance recorder, 4x G5 turret 4.0MP camera set UNVR-Instant-Kit, 1x 1TB HDD, 1x Din bracket, 1x Wall bracket, 1x Power cable, 1x Instructions

Manufacturer:
UBIQUITI
Ubiquiti Headquarters
685 Third Avenue, New York 10017, USA

Data of the responsible person in the EU:
UBIQUITI
Ubiquiti International Holding BV
Ekkersrijt 3102, 5692 CC Son en Breugel, Belgium
support@ui.com

Same summary

This video surveillance system is suitable for users who want to cover multiple external or internal points of their home at the same time and for whom stability and reliability of recording are important. The system of four cameras with 4 MP resolution allows a better overview of what is happening and better recognition of people and objects, so it is useful for the purposes of increased security around the house or yard. The wired PoE connection provides easy power supply and stable transmission, which is practically everywhere where an electrical connection is available. The disadvantage may be for those who are looking for the flexibility of wireless installation or need coverage in locations without the possibility of a wired connection.

Recommendation source: Enaa guides and team experience.

User view

This system is most often chosen by users who want a long-term solution for monitoring their home, yard or garage and want to avoid possible interruptions in operation due to WiFi signal interruptions or empty batteries. The practical advantage is the reliable wired connection, which allows for constant and smooth live monitoring or viewing of recordings via the app, without fear of missing events.

For many, the broader ecosystem of assured quality represented by the Ubiquiti brand offering is also important, as it is considered one of the most trusted names in the field of networking solutions and home surveillance.

Why buy at Enaa

You can choose from proven systems from well-known brands, while the platform provides you with a quick overview of key features, making it easier to make decisions and choose a solution tailored to your home.

Answers to frequently asked questions

Is this system suitable for outdoor use all year round?

Yes, the cameras are designed for outdoor use and are weatherproof (IP66), meaning they will withstand rain, snow, or dust.

What do I need to install the system if the house does not yet have a network infrastructure?

For the system to operate, you need a wired network and PoE power supply at the installation locations, so it makes sense to plan the cable route to each camera point in advance.

Can the recordings be monitored via a mobile app?

Yes, the system supports live monitoring and access to recordings via a mobile app, allowing you to monitor what's happening wherever you are.

How long can I store recordings on the included HDD?

When you purchase, you receive a 1TB hard drive, which is enough for several days or weeks of recording, depending on the quality settings and the number of active cameras.

Can the system be expanded with additional cameras?

The system supports additional cameras of the same standard, but it is recommended to check compatibility and connection restrictions in advance according to the recorder model.

Description updated: April 2026
