CAMERA NETWORK POE SYSTEM

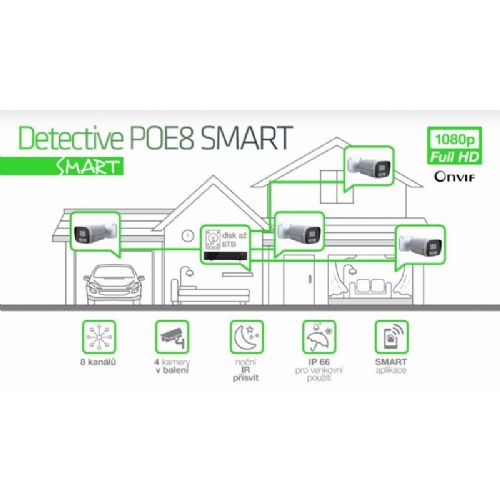

The 8-channel EVOLVEO Detective POE8 SMART camera system is the ideal solution for monitoring and securing your home, office, warehouse or business. It is a compact camera system that uses POE power for the cameras, so there is no need to have a power outlet for each camera. A UTP cable with an RJ45 connector on both ends provides both power for the camera and signal transmission from the NVR unit to the cameras. Its clear image can be used both day and night to protect and monitor your family home or business, as well as to monitor your store or to monitor public spaces. All recorded events are uploaded directly to the hard drive that you insert into the main unit, so you have full control over your data. You can access the recording using a mobile application or the iCMS program for Windows OS. You can also view the recording on a monitor connected directly to the NVR unit via an HDMI or VGA cable.

CONNECTION OPTIONS

If you already have IP cameras that support ONVIF and you need to unify your recording system and possibly enable access via the app, there is nothing easier than adding the cameras to the free EVOLVEO Detective POE8 SMART channels. Just make sure the cameras are on the same network as the NVR unit. Then you just need to search for compatible devices, enter the password and the cameras are grouped in one interface, including recording to the NVR unit's hard drive, so your recordings remain safely stored on local storage.

POWER SUPPLY

Before the first start, it is enough to insert a disk into the device, which is not difficult. You need a few screws to remove the cover and then insert the disk in the 3.5" or 2.5" format. All you need is a Phillips screwdriver. Then just connect the mouse, monitor and network cable and you can start setting up the computer. The Detective POE8 SMART interface is fully localized in English. The guide will guide you step by step in English through the initial setup. The included cameras are already paired with the NVR unit, so you only need to connect them with a UTP cable.

ADDITIONAL CAMERA EXPANSION

If the basic 4 cameras in the package are not enough for you, or if the camera design is not suitable, the same EVOLVEO camera can be expanded with additional cameras in Antivandal. Or the EVOLVEO Detective WIP 2M SMART WiFi/Ethernet camera , which is completely independent and supports the ONVIF protocol , to add it to a single camera system in the network.

Thanks to the SMART solution , the device can be connected to other devices, such as the EVOLVEO ALARMEX PRO , where you can use the SMARTLIFE application scenarios to connect individual device functions to each other. All devices can be found in the SMART category.

• 8-channel Full HD NVR with POE power supply
• 8× external full metal camera
• Microphone for recording sound
• IR night light 850nm 2x 3W IR LED
• IR range 15-20m
• 1/2.9" 2Mp CMOS sensor
• Lens 4 mm f=2.4 fixed, horizontal angle 84, vertical angle 45
• Full HD 1080p 30fps recording
• Mainstream: 1080p at 2Mbps
• Substream: 640 x 360 at 500 Kbps
• H.265 compression
• Hisilicon Hi3536DV100
• USB and mouse support (mouse included)
• 1× SATA 3.5" or 2.5" hard drive bays - up to 8TB
• 1xWAN, 2x USB, VGA, HDMI, 8x LAN/POE port for cameras
• Smartlife (Tuya) app in EN for iOS and Android
• iCMS program for Windows OS
• Supports Onvif protocol
• Motion detection from an image
• Anti-vandal camera or wifi camera EVOLVEO
• Operating temperature -15 C/+50 C
• NVR dimensions WxHxD: 235x49x225 mm
• Camera dimensions WxHxD: 70x55x185 mm, distance between mounting screws 47x47 mm
• NVR weight: 950g without HDD
• Camera weight: 414g
• Maximum power required: 96 W
• WITHOUT built-in HDD
• Network cables not included

Package contents:

NVR unit with 8x LAN/POE ports, SATA connection for up to 8TB disk

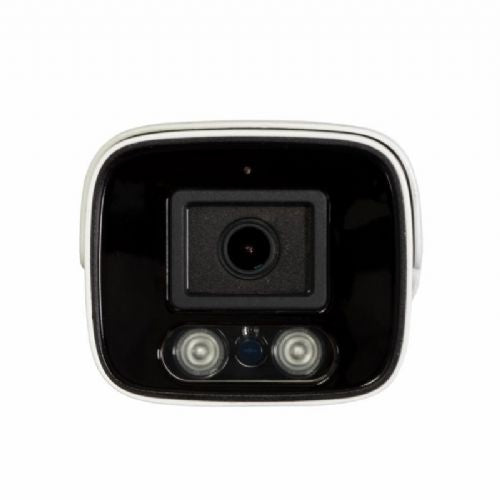

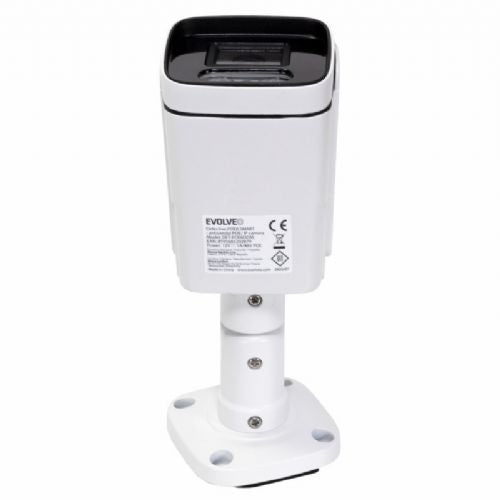

8x POE Bullet IP66 Night Vision Camera

1x DC 48V 2A power supply

4x camera mounting kit

4x bayonet sealing cap for RJ45 connector

1x USB mouse

1xSATA cable for HDD connection

1x user manual

User view

The Evolveo Detective POE8 SMART video surveillance system with eight cameras is more often chosen by families who want to reliably protect their home, as well as owners of houses or cottages where it is important to have a constant overview of various outdoor or indoor spaces. The system is also suitable for small entrepreneurs and users looking for a practical solution for basic environmental monitoring without complicated management or additional cables, as it allows for a simple wired connection via PoE.

It is often important for users to be able to integrate the system into the existing Tuya smart ecosystem and to choose a manufacturer known for simple but reliable solutions – such as Evolveo , where customers also appreciate the availability of technical support and a wider range of security products.

Why buy at Enaa

At Enaa you can find a wide range of video surveillance systems, allowing you to easily compare different models and filter according to your needs. Our team regularly monitors new trends and tests products, so we help users with professional advice and practical information.

Answers to frequently asked questions

Is this video surveillance system suitable for outdoor use?

Yes, due to the robust housing and weather resistance of the cameras, the system is well suited for outdoor use, such as in yards, parking lots or gardens.

What does PoE power supply mean and why is it useful?

PoE (Power over Ethernet) means that cameras are powered and simultaneously transmit data over the same network cable, which simplifies installation and reduces the need for additional power supplies.

Can the system be connected to existing smart devices?

Yes, the system supports connection to the Tuya platform, which allows integration with various smart devices for greater flexibility of use in different environments.

How much space do I need to store my recordings?

The amount of space required depends on the recording settings and the length of the archive, and the system usually allows you to choose different storage options depending on your needs.

Is the system complicated to use even for beginners?

The use is also adapted to less experienced users, as camera management and access to recordings are designed to be simple and transparent.

Description updated: March 2026
