The Tenda 5MP PT Dual outdoor IP camera with a dual lens system allows simultaneous coverage of two areas and accurate detection of people and vehicles with advanced algorithms. Night vision up to 30 m. Wide-angle and telephoto lenses provide comprehensive protection, connection is possible wired or wireless, storage on a microSD card up to 512 GM. Withstands all weather conditions.

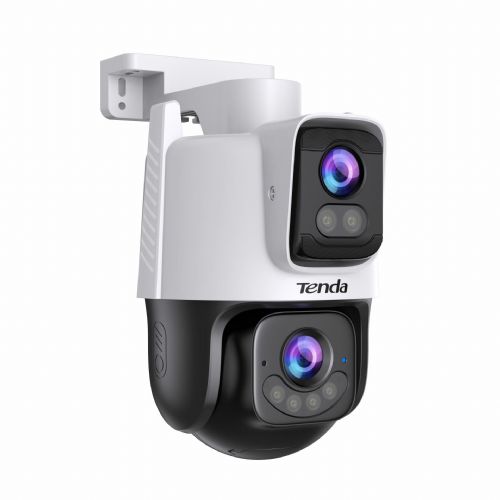

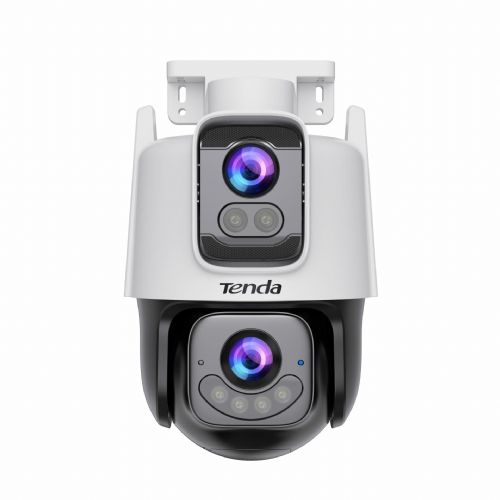

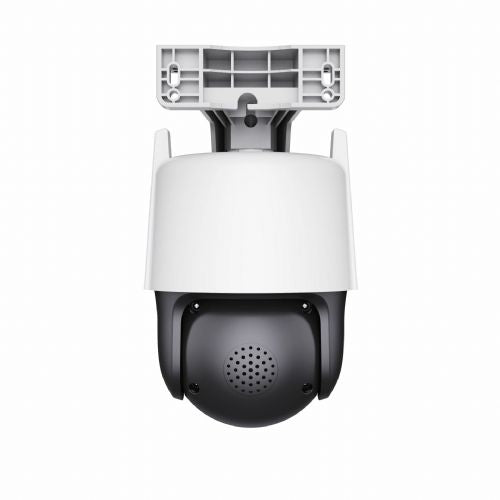

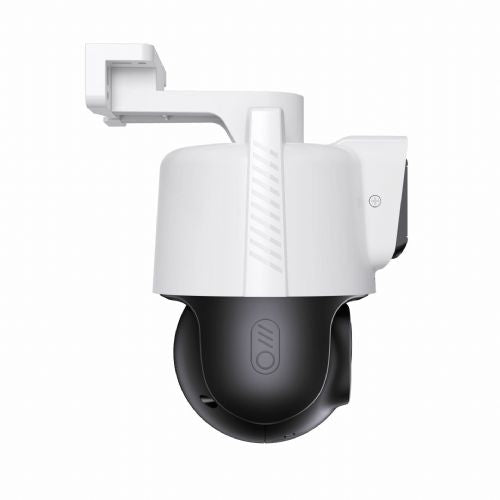

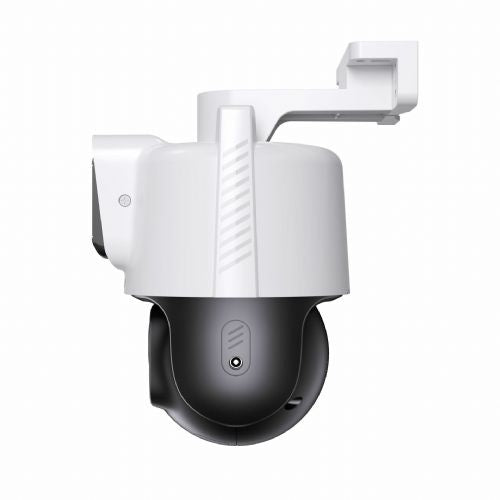

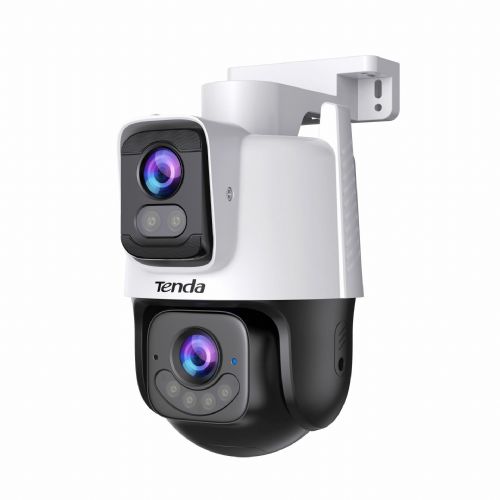

Tenda CH10 is an outdoor surveillance camera with two lenses, a fixed and a rotating PT lens, which allows for wider area monitoring. It supports resolution up to 2880 x 1620, night vision with infrared illumination and reflectors up to 30 m, and color or black and white night mode. The built-in microphone and speaker enable two-way audio communication. The camera supports detection of people, vehicles and other events, tracking using both lenses, and sound and light alerts. It connects via 2.4 GHz Wi-Fi or Ethernet and allows local storage on a microSD card up to 512 GB.

Technical features:
– Product type: outdoor surveillance camera with two lenses
– Image sensor: 1/3-inch progressive scan CMOS
– Day/night mode switching: ICR
– Housing material: plastic
– Protection level: IP65
– LED indicator: two-color, red and blue
– Reset button

Lens
– Fixed lens: focal length 4 mm, aperture F1.6
– PT lens: focal length 6 mm, aperture F1.6
– Fixed lens viewing angle: horizontal 83.2°, vertical 52.9°, diagonal 90.7°
– PT lens viewing angle: horizontal 51.4°, vertical 29.3°, diagonal 56.9°

Pan and tilt
– Panning range: 0° to 355°
– Tilt range: 0° to 90°
– Bracket angle adjustment: panoramic rotation from 0° to 260°
– Preset positions: 6
– Patrolling modes: panoramic patrolling and patrolling at preset positions

Lighting and night vision
– Additional lighting: 6 infrared lights and 6 reflectors
– Additional lighting range: up to 30 m, depending on the environment
– Infrared light wavelength: 850 nm
– Night vision modes: smart mode, color mode and black and white mode

Videos
– Video codecs: H.265, H.264
– Main stream, fixed and PT lens: 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
– Auxiliary stream, fixed and PT lens: 768 x 432
– Frame rate: 1 to 15 fps, default 15 fps
– Bit rate: 512 to 4096 kb/s
– Bitrate control: CBR, VBR

Sound
– Audio codecs: G.711A, G.711U, AAC
– Audio sampling frequency: 8 kHz
– Audio communication: two-way audio and voice input
– Microphone: built-in, with adjustable volume
– Speaker: built-in
– Alarm volume: 83 dBA at a distance of 1 m
– Sound level: adjustable

Image enhancement and privacy
– Image enhancement: DWDR, BLC, HLC, 3D DNR
– Privacy mask areas: 4

Network connectivity
– Ethernet: 1 RJ45 connector, 10/100 Mb/s with auto-negotiation
– ONVIF: supported for fixed and PT lens
– Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
– Supported clients: TDSEE for mobile phones, TDSEE STUDIO for PCs
– Web browsers for live viewing without plugins: Chrome, Edge, Opera

Wireless connection
– Built-in antenna
– Wi-Fi standards: IEEE 802.11 b/g/n/ax
– Maximum transfer speed: up to 287 Mbps
– Channel width: 20/40 MHz
– Modulation: DSSS, OFDM, OFDMA
– Frequency band: 2.4 GHz, 2412 to 2472 MHz, channels 1 to 13
– Transmitting power: less than 0.1 W EIRP
– Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Detection and alerts
– Detection of people, vehicles and non-motorized vehicles
– Line crossing and area intrusion detection
– Sound and light warnings
– Tracking with linked operation of both lenses

Storage
– microSD memory card slot
– Maximum supported card capacity: 512 GB

Power supply
– Supply voltage: 12 V DC - 1A
– Power connector: 5.5 x 2.1 mm

Installation
– Wall mounting
– Ceiling installation
– Pole mounting

Environmental conditions
– Operating temperature: from -30 °C to 60 °C
– Storage temperature: -40°C to 70°C
– Operating humidity: 10% to 95% RH, non-condensing
– Storage humidity: 3% to 95% RH

Package includes: 1x Tenda CH10 camera, 1x Power supply with 3 m cable, 1x Installation template, 1x Mounting hardware kit, 1x Water protection kit, 1x Quick installation guide

Warranty: 12 months
Weight: 0.575 kg

Manufacturer:
Awning
TENDA TECHNOLOGY (HK) INTERNATIONAL CO. LTD.,
RM611.6/F RICKY CENTER 36, CHONG YIP STREET, KWUN TONG, CHINA
support@tenda.cn

Data of the responsible person in the EU:
Awning
TENDA POLSKA SP. Z OO
st. Górczewska 216, 01-460 Warszawa, Poland
support.pl@tenda.cn

It is important to know

Before purchasing this camera, it is important to check whether you have a suitable network connection in your chosen location and whether you are interested in features that are not described in more detail in the data. The external marking and the ability to rotate help in choosing the location of use, but do not tell you in themselves how the camera performs in night surveillance.

• Wi-Fi information does not confirm a cellular connection. If there is no wireless network at the location, check if a wired connection is viable there.
• If you need nighttime monitoring, look up the night visibility information before purchasing and check if it matches the distance you want to monitor.
• The rotation option is useful when you want to change the direction of view; however, the data does not explain how it is controlled or how wide an area the camera covers.

Source of editorial recommendations: general verifiable guidelines for product selection.

In practice

🏡 External entrance or surrounding area monitoring

🟢 Very suitable - the camera is intended for outdoor use, so this scenario is consistent with the stated product properties.

🔄 Changing the direction of view

🟢 Very convenient - the rotation option is useful if you want to adjust the direction of view depending on which part of the room you are monitoring.

Answers to frequently asked questions

Is the camera suitable for outdoor surveillance?

Yes, the product is labeled as an outdoor camera. If you will be using it at night, check the night vision information before purchasing.

Can I use it in a location without Wi-Fi?

The data also indicates a wired connection, but does not confirm a cellular connection. If there is no Wi-Fi in the location, check if a wired connection is feasible.

Description updated: October 2026
