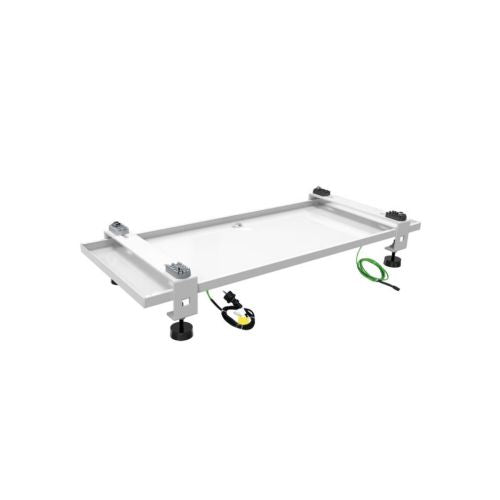

SBP floor stand with anti-vibration elements and heating cable

SBP is a practical floor mounting kit for the condensation tank, equipped with anti-vibration elements and an anti-freeze heating cable. The kit allows for stable and safe installation of the tank and reduces the transmission of vibrations to the substrate.

It is supplied as a complete kit, so it contains all the key elements for installation: heated pan, floor brackets, mounting screws, condensate drain pipe, sliding anti-vibration elements and adjustable anti-vibration feet.

The built-in heating cable helps prevent condensation from freezing at low temperatures. The heating operation is automatically regulated by a built-in thermostat, which turns the heating cable on at 3 °C and off at 12 °C.

Technical data

• Material: galvanized sheet metal

• Surface protection: exterior polyester paint

• Supply voltage: 230 V

• Heating cable: 15 W/m

• Heating cable length: 9 m (6 + 3 m)

• Drain hose length: 3 m

• Thermostat: on at 3 °C, off at 12 °C

• Anti-vibration elements: sliding "NO-SHOCK"

• Floor feet: adjustable anti-vibration

• Condensate drain: hose and tap included

• Container dimension: 1100 × 550 mm

• Color: white

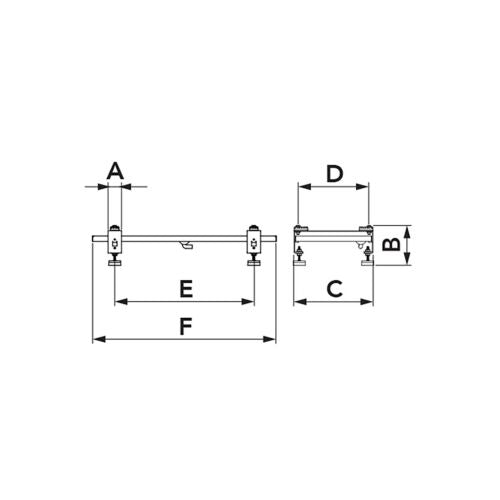

• A: 60 mm

• B: 130–170 mm

• C: 552 mm

• L: 400–520 mm

• E: 400–1040 mm

• F: 1100 mm

• Load capacity: 150 kg
