KUBLOCK – anti-vibration mounts for air conditioners

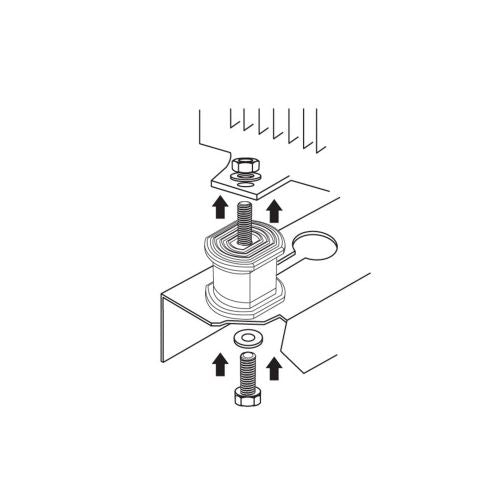

KUBLOCK are high-quality cube-shaped anti-vibration mounts designed to reduce the transmission of vibrations from air conditioners to the supporting structure or floor. They are equipped with a reinforced upper and lower support made of thermoplastic and a specially designed central part made of volume elastomer, which effectively absorbs vibrations. The mounts have deformable contact surfaces that enable correct installation and stable position of the air conditioner. Various versions are available with different spring hardnesses, which are recognizable by color and allow selection according to the load and purpose of use. The materials are resistant to atmospheric aging and UV rays, so they are also suitable for outdoor use. The product is supplied in a set of 4 anti-vibration mounts, together with mounting material for mounting on a support or directly to the floor.

Main advantages

• effective reduction of vibrations and noise
• reinforced upper and lower support made of thermoplastic material
• central part made of high-quality volume elastomer
• Deformable contact surfaces for correct positioning
• different hardnesses depending on the load
• weather and UV resistant
• suitable for mounting on supports or floors

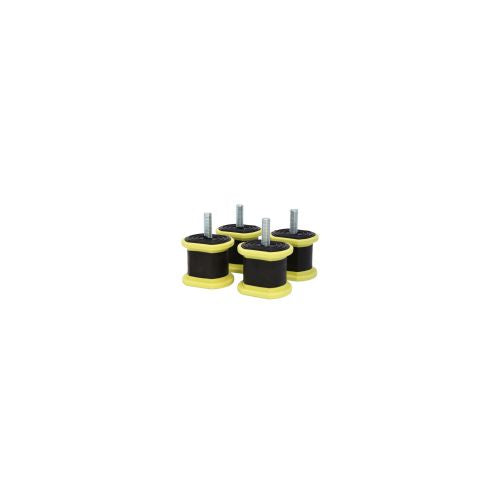

• supplied in a set of 4 pieces with mounting material

Technical features

• Load capacity: for air conditioners up to 200 kg
• Dimensions: 62 × 40 mm (H × W)
• Thread: M8
• Temperature range: −5 °C to +120 °C
