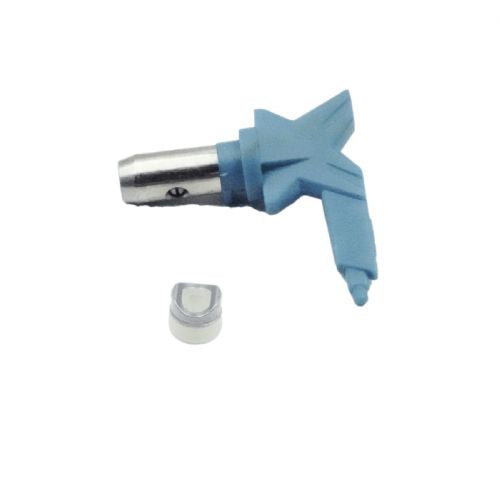

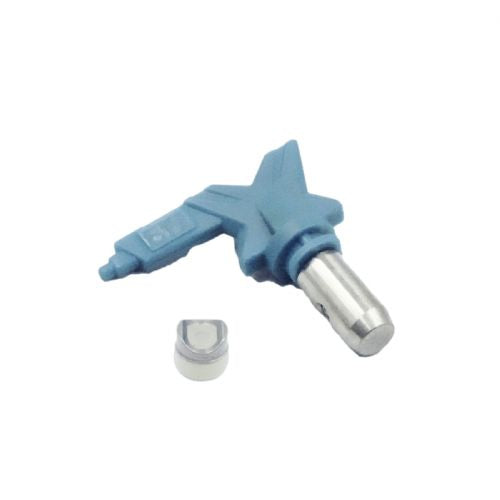

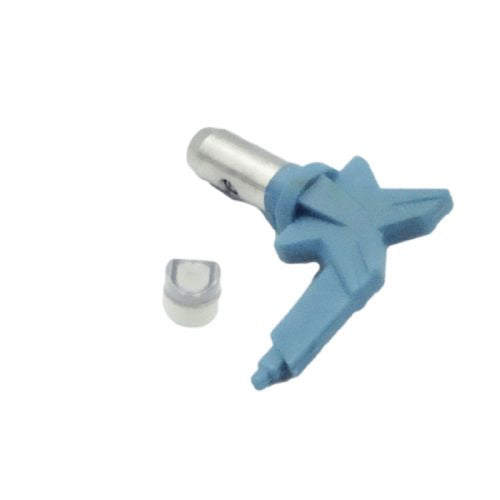

Spray nozzle for airless Wagner/Graco guns 517 – Professional precision for perfect paint application
Are you looking for a reliable, durable and high-performance nozzle for your airless paint sprayer? The Wagner/Graco 517 Airless Spray Nozzle (SKU: CG80770A) is a premium accessory that delivers professional results with every painting job. Designed for optimal dispersion and even paint application without dripping or uneven edges, this nozzle is an essential spare part for professional painters and demanding DIYers who do not compromise on quality.
Thanks to its universal design, the 517 nozzle is fully compatible with popular systems from the Wagner and Graco brands. Whether you are renovating residential premises, painting a facade or applying protective coatings to larger surfaces, this nozzle will ensure fast, efficient and extremely economical work.

Key benefits of using the Airless 517 nozzle
Using quality spare parts is the key to a long service life of your painting equipment and flawless work. This professional spray nozzle offers many advantages:

Exceptional efficiency and speed: The jet width between 250 and 300 mm enables extremely fast coverage of large areas, significantly reducing work process time and increasing your productivity.
Full, streak-free coverage: A precision-engineered 0.017-inch (0.43 mm) orifice ensures fine atomization of paint, preventing unwanted streaks and ensuring a smooth, professional application on the first pass.
Versatile use: The nozzle is ideal for working with a wide range of materials, from thicker wall paints to more demanding facade coatings and emulsions.
Reduced paint consumption: Optimized flow rate of 1.17 L/min reduces overspray, which means less wasted material, a cleaner work environment and less cleanup after the job is done.
High pressure durability: Designed to operate safely under extremely high pressure up to 5000 psi (345 bar), ensuring an extremely long service life even in daily professional use on demanding construction sites.


Technical specifications and features
The 517 Spray Nozzle (SKU: CG80770A) is made of premium materials that are extremely resistant to abrasion, mechanical damage and high pressures. Below are the exact technical data to ensure full compatibility with your existing equipment:

Aperture (hole) size: 0.017 in. (0.43 mm) – ideal choice for medium to dense materials.
Spray width: 250 - 300 mm (when spraying at an angle of 50° from a distance of 30 cm from the working surface).
Material flow: 1.17 L/min for a completely even, constant and controlled application.
Maximum working pressure: up to 5000 psi (345 bar) for safe and stable operation at the highest loads.
Mounting pin diameter: 11.1 mm – a standard dimension that allows for quick and easy installation without additional tools.
Material compatibility: Excellent for acrylic paints, latex paints, silicate paints, dispersions and various base emulsions.


For which materials is the 517 nozzle suitable?
Choosing the right nozzle size is crucial to the final appearance and quality of the painted surface. The 517 nozzle size is considered the most versatile and popular choice on the market, as it is optimally adapted to apply the following coatings:

Acrylic paints: To achieve perfectly smooth surfaces on interior and exterior walls.
Latex paints: An excellent choice for applying durable coatings in kitchens, bathrooms, and other high-traffic areas.
Silicate paints: For durable, even and breathable protection of your facade surfaces.
Emulsions and primers: For quick and optimal preparation of the substrate before final painting.


Demonstration video of operation
See how easy it is to install and how effective the spray nozzle works in practice. The video below shows the correct installation on the gun and the correct spraying technique to achieve the best results without any effort:


Frequently Asked Questions (FAQ)
1. Will this nozzle fit my Graco or Wagner spray gun?
Yes, this spray tip has a standard 11.1mm mounting pin diameter. This means it is fully compatible with most standard airless guns from Wagner, Graco and other established manufacturers on the market that use this established industry standard.
2. What exactly does the 517 marking on the nozzle mean?
The 517 designation consists of two parts that determine the spray characteristics. The first number "5" indicates the spray angle (50 degrees), which at the recommended distance of 30 cm from the wall creates a jet width of approximately 250 to 300 mm. The last two numbers "17" indicate the size of the nozzle opening itself, which is 0.017 inches or 0.43 mm, which determines the flow and suitability for certain paint densities.
3. How often does the airless nozzle need to be replaced?
The life of the nozzle depends primarily on the abrasiveness of the materials you are applying. Abrasive materials (such as some facade and silicate paints) wear the nozzle opening faster. When you notice that the width of the jet is visibly narrowing, that the paint consumption increases inexplicably, or uneven lines begin to appear at the edges of the jet, this is a clear sign that it is time to replace the nozzle with a new CG80770A spare nozzle.


Responsible persons:
GEKO - GEKO SPÓŁKA Z OGRANICZNĄ ODPOWIEDZIALNOŚCIA SPÓŁKA KOMANDYTOWA, ul. Spacerowa 3, 97-500 Kietlin, Poland, (+48) 446824004, geko@geko.pl
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Before use, check that the 517 nozzle is compatible with your Wagner or Graco airless gun and that the nozzle, seal and mounting parts are undamaged.
• Turn off the airless sprayer and relieve pressure completely before installing, removing or cleaning the tip.

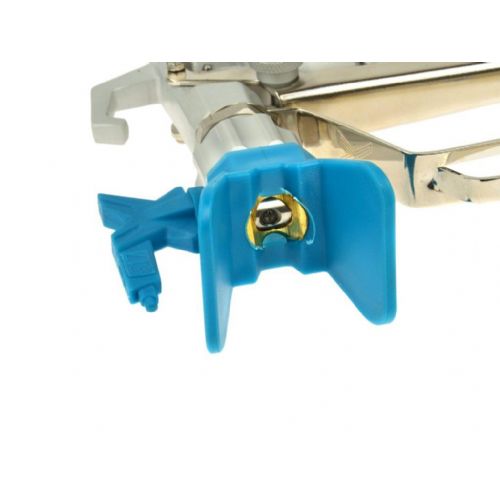

• Place the nozzle correctly in the gun holder together with the appropriate seal and secure it in accordance with the gun manufacturer's instructions.
• Before starting, check that the nozzle is correctly oriented and securely installed.
• When spraying, hold the gun approximately 30 cm from the surface and guide it evenly, parallel to the surface. For model 517, the stated spray width is approximately 250–300 mm.
• Move the gun at a steady speed. Do not stop in one place, as this may result in a too thick coating.
• For best results, make overlapping passes rather than trying to cover the entire surface in one pass.
• If the nozzle becomes clogged, first turn off the machine and relieve the pressure. If your system has a reversible nozzle, you can turn it to the unclogging position; some 517 models have this feature specifically designed for this purpose.
• After finishing work, remove the nozzle and clean it with a product that is compatible with the paint used.
• Before storing, check the nozzle and seal and keep them clean and protected.

Useful tips for work:
• The designation 517 means approximately 0.017" (0.43 mm) orifice. In this design, the stated jet width is approximately 250–300 mm and the flow rate is approximately 1.17 l/min.
• The nozzle is listed for acrylic, latex, silicate and emulsion paints. Always check the manufacturer's recommendations for the specific coating.
• For larger areas, the wider 517 pattern is practical, allowing for faster coverage. Graco also lists a maximum pattern width of approximately 254 mm (10") for its TrueAirless 517.
• Before painting, always check that the paint is properly prepared and filtered for the nozzle used.
• If the application is too thick, uneven or there is excessive overspray, adjust the distance, speed of movement and pressure according to the instructions for your device.
• Do not clean the nozzle with needles, wire or other hard objects that could damage the precision orifice.
• Clean the nozzle as soon as possible after use. Dried paint can cause clogging and uneven patterns.
• Check the nozzle regularly. A worn nozzle may start to deposit more material and create a poorer pattern.
• When replacing the nozzle, we also recommend inspecting or replacing the seal if it is worn.

Warnings:
• Airless spraying is carried out under very high pressure. The maximum working pressure listed for this nozzle is 345 bar (5000 psi).
• Never point the gun at yourself, other people or animals.
• Do not check for leaks by looking for them with your finger or hand. The high-pressure jet can cause serious damage to skin and tissue.
• Always perform the complete pressure relief procedure specified by the airless sprayer manufacturer before removing or cleaning the tip.
• Do not exceed the maximum allowable pressure of any part of the system.
• Do not use a damaged, deformed or severely worn nozzle.
• Check that the nozzle is properly attached before restoring pressure.
• When spraying, use safety glasses or a visor, protective gloves and appropriate respiratory protection depending on the coating used.
• Ensure sufficient ventilation of the room and follow the safety data sheet of the paint used.
• Coatings may contain substances that are hazardous if inhaled or come into contact with skin; follow the coating manufacturer's instructions.
• For flammable coatings, remove ignition sources and observe special requirements for the use of flammable substances.
• Keep children and other persons away from the work area during spraying.
• Keep the nozzle clean and protected from impacts, as even damage to the opening can affect the quality of the spray.

Same summary

The Wagner/Graco 517 airless spray nozzle is best suited for users looking for a reliable solution to replace worn or clogged nozzles on their painting equipment. It will suit DIYers or those who occasionally refresh surfaces, but also those who use the tool regularly, if they first check the exact compatibility with their gun. Before purchasing, it is crucial to check whether the nozzle matches the exact model of your airless gun, as the wrong choice can cause uneven paint application or even damage to the tool. Compromising on price does not always make sense, especially if the nozzle is used frequently or under heavy load.

Recommendation source: Enaa guides and team experiences.

User view

The typical user of this spray tip is the owner or user of a Wagner or Graco airless gun who wants to quickly restore smooth operation of their equipment. The practical value of the 517 nozzle is mainly that it allows easy restoration of the gun's performance and prevents unwanted errors in paint application, which is especially important when painting larger areas or precise details in the house, garage or garden.

Users often choose Geko brand accessories because of their proven quality and wide selection of products, which make it easier to find the right replacement part for different types of tools.

Why buy at Enaa

At Enaa you will find a wide range of spare parts and accessories for tools, where we pay special attention to clear descriptions of product compatibility with the most common tool models. In addition, you can quickly compare several options to choose the most suitable nozzle according to your needs and level of use.

Answers to frequently asked questions

Is this spray nozzle suitable for all Wagner and Graco airless guns?

The 517 nozzle is not universal and is only compatible with certain Wagner and Graco airless gun models; always check the exact model number of your gun before purchasing.

How often should the spray nozzle be replaced for optimal performance?

The frequency of replacement depends on the intensity of use and the type of materials used. With regular use and thicker coatings, it makes sense to replace after several larger applications or when the spray pattern noticeably deteriorates.

What can I do if the nozzle does not fit my gun model?

If the product turns out to be incompatible, we recommend checking the descriptions of other nozzles, where a more accurate match to gun models is often given.

Are different nozzle sizes available depending on the type of coating?

Yes, the nozzle size should be adjusted to the type and density of the coating; the 517 nozzle is a common choice for medium-thick paint or varnish, but there are other sizes for very thin or very thick coatings.
