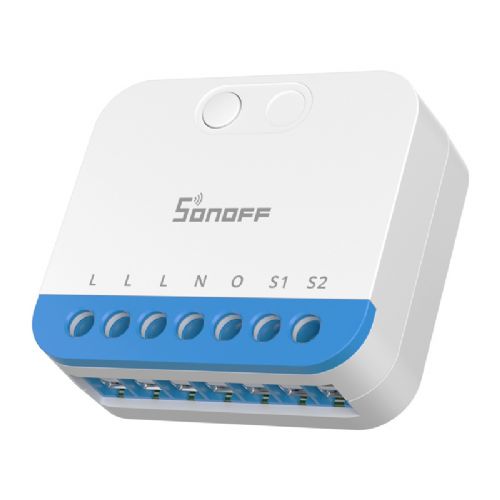

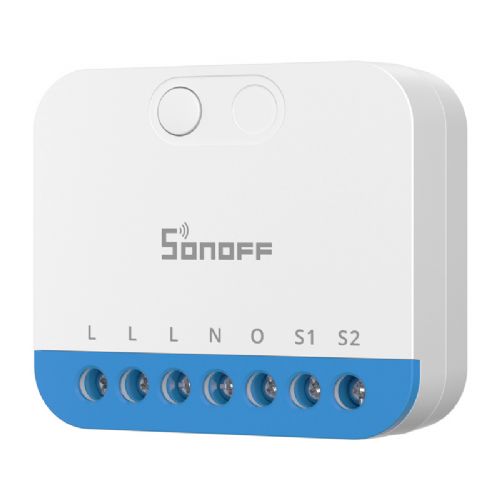

Sonoff MINI-ZBDIM Zigbee smart mini controller/dimmer

Sonoff MINI-ZBDIM Zigbee is a smart, built-in controller and dimmer that turns ordinary lighting into an advanced smart home system. It offers smooth brightness adjustment from 0 to 100%, on/off, schedules, timers, scenes, energy monitoring, and control via app and voice. It operates according to the Zigbee 3.0 standard, acts as a network router, extends the range of the entire installation, and works with a variety of gateways and platforms, from eWeLink to Home Assistant. Its small size, high power (up to 400W), automatic calibration, and extensive security features make it a reliable solution for any modern home.

Zigbee 3.0 – stable connection and greater range for the entire network

Zigbee technology ensures fast response, low power consumption and independence from WiFi. MINI-ZBDIM acts as a router that amplifies the signal and extends the range of the mesh network, helping other devices communicate more effectively even in larger apartments and houses. The result? More stable operation of the entire system and fewer dead zones.

Unlimited compatibility

The module easily connects to popular Zigbee gateways such as ZBBridge-P, ZBBridge-U, NSPanel Pro, iHost, as well as USB dongles for Home Assistant (ZBDongle-P/E, Dongle Plus MG24, Dongle Lite MG21 or Dongle Max). Integration with eWeLink, Home Assistant (ZHA, Zigbee2MQTT) and even Apple Home via Matter Bridge gives you the freedom to choose your platform and develop your system without being limited to a single ecosystem.

Smooth dimming without flickering

Advanced trailing edge dimming technology ensures smooth brightness control without flickering or buzzing. MINI-ZBDIM works with dimmable LEDs up to 200 VA, traditional and halogen lamps up to 400 W, and electronic transformers up to 200 W. One device can handle both soft night lighting and full lighting of a living room or kitchen.

Control via app, voice and scenes – intelligence for everyday use

In the app, you can set schedules, timers, dimming mode, power outage status, lighting scenes and automations tailored to your lifestyle. Voice control lets you change the brightness or turn off the lights without having to get up from the couch, and built-in energy metering helps you control costs. In addition, automatic and manual brightness calibration adapts the dimming range to a specific lamp, eliminating problems with minimum light levels.

Miniature design, maximum possibilities in a flush-mounted box

With compact dimensions of 45 × 39.4 × 16.8 mm, the module easily fits into standard EU, 86 and 120 mounting boxes. Install it behind a traditional switch and maintain the classic look of your wall, while ensuring full smart functionality without renovation or additional surface-mounted devices.

Superior safety and durability – reliability for years to come

The housing made of flame-retardant PC plastic (V-0 grade), NTC temperature sensor, overheating protection, overvoltage protection and wired connections ensure stable and safe operation even under high loads. The powerful EFR32MG21 chip ensures reliable Zigbee communication, while CE and RoHS certificates and a 2-year warranty confirm the quality you can rely on every day.

Included:

• Sonoff MINI-ZBDIM smart dimmer switch
• User manual

Warranty: 12 months

The text is machine translated.

Same summary

The Sonoff MINI-ZBDIM Zigbee smart mini controller/dimmer is designed for users who want to upgrade existing switches in their home in a smart and discreet way, without major installation work. Due to the built-in format and Zigbee protocol, the product makes the most sense for those who already use a smart system with Zigbee support at home or want to connect multiple devices into a single ecosystem via an app. It is especially suitable for users who are primarily looking for the possibility of remote control (via an app) or scenario automation, but may be less suitable if there is not enough space in the electrical box for installation or if there is no appropriate support in your smart home.

Recommendation source: Enaa guides and team experiences.

User view

The product is often chosen by those who are decorating or renovating their home and want to keep their existing switch while upgrading it with smart features. Practical scenarios include controlling lights remotely, dimming via phone or automatically adjusting the light according to a schedule. It also comes into its own in households where multiple members want to use lights or other devices with a single touch, voice command or via automation.

Users like to use Sonoff products because it offers a proven, broader ecosystem of smart solutions that can be meaningfully upgraded or integrated with existing devices.

Why buy at Enaa

At Enaa, you can count on experienced smart home consultants and clear application descriptions that make it easy to choose the right solution. Thanks to the regular offer of renowned brands such as Sonoff, you can conveniently find components of the same ecosystem in one place.

Answers to frequently asked questions

Do I need an additional Zigbee hub to operate Sonoff MINI-ZBDIM Zigbee?

To use the controller in an existing Zigbee ecosystem, you usually need a Zigbee hub, unless you already have a central unit that supports this device.

What should I check before installing in an existing box?

It is recommended to measure the space in the existing electrical box and check whether the module can be safely installed and properly connected to the type of switch you are using.

Can the Sonoff MINI-ZBDIM Zigbee be controlled only via the app?

No, it also allows local control via an existing switch, and the module itself also supports scenarios and automations within a compatible Zigbee system.

What types of lamps is the module suitable for?

It is most commonly used to control wall lights or dimmable fixtures, but it is important to check compatibility with your installation and types of fixtures.

What does it mean to support "application" as a management type?

This means you can connect the device to the appropriate smart home mobile app and use it to operate the controller remotely or set up automated lighting scenarios.

Description updated: April 2026
