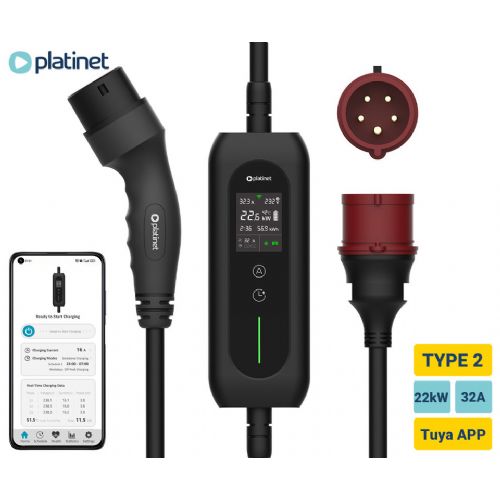

Platinet PPCW5M22 - carefree & smart charging!

In response to the growing needs of electric vehicle users, here is the PLATINET electric vehicle charger – model PPCW5M22. This technologically advanced device combines high quality workmanship with intuitive operation, full control of charging parameters and an unparalleled level of safety.

• Unparalleled convenience - allows you to charge your electric vehicle or plug-in hybrid anywhere, anytime.
• Compact and portable - ideal for everyday commutes, travel or emergencies.
• Fast charging with up to 22kW - offers high charging speeds for your EV or PHEV so you can get back on the road quickly.
• Wide Compatibility TYPE 2 - compatible with a wide range of vehicles, making it a versatile choice for charging.
• Integrated LCD display - provides instant access to all key information and settings.
• Tuya SMART with WIFI & Bluetooth module - control the device from anywhere with the Tuya mobile app.
• Intelligent charging system - adjust current, set a schedule, view charging history, receive notifications, and control multiple devices in one app to optimize charging efficiency and protect your vehicle.

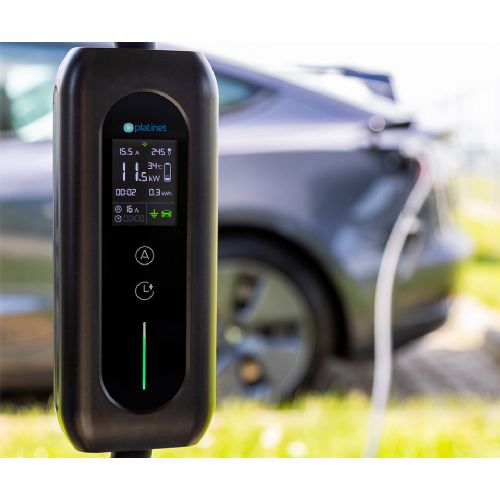

Modern LCD display with backlight

The built-in backlit LCD display provides instant access to all key information. The clear interface, clear icons and dynamic updates make the charger intuitive and convenient – even for new users.

On the screen you will find, among other things:

• Current amperage and charging power
• Current charging voltage and phase indicator
• Total charging time and set time limits
• Device temperature, charge status, and energy amount
• WIFI connection information - remote control button

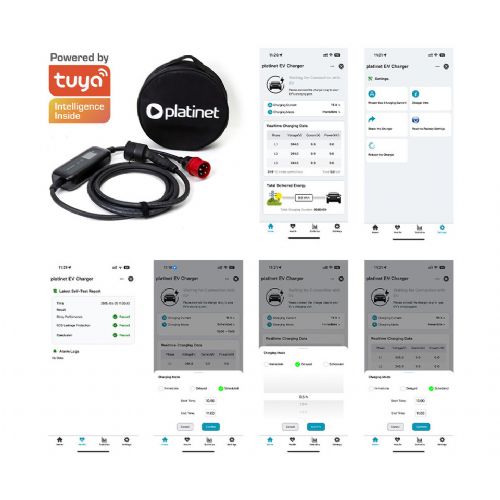

Remote control and integration with Tuya Smart APP

PLATINET PPCW5M22 is equipped with a WIFI and Bluetooth module, so you can control the device from anywhere with the free TUYA mobile application .

This offers a range of options:

• Changing remote charging settings
• Create and edit charging schedules
• View charging history
• Receive alarm and status notifications
• Manage multiple devices from a single app

With Tuya, the charger becomes part of the smart home or business ecosystem, allowing for easy integration with other IoT devices.

Top-notch security – protection you can trust

High user safety is our top priority. The PPCW5M22 is equipped with a comprehensive set of protections that protect not only the vehicle, but also the electrical system and the user.

The best protections also include:

• RCD type B (AC 30 mA + DC 6 mA) - complete differential protection
• Self-testing and control - prevents contacts from sticking
• Protection against overheating, overload, overvoltage and voltage drops
• Fault alarm - including lack of ground, overheating or EV diode failure
• Durable, dustproof and waterproof housing - IP66 certified

Ready for all conditions

The PLATINET PPCW5M22 charger was designed to operate in various conditions:

• Operating temperature range: from -25°C to +45°C
• Operating altitude: up to 2000 m above sea level
• Plugs and connectors with increased resistance: IP54 (vehicle), IP44 (CEE)
• Thanks to its solid construction and thoughtful ergonomics, the charger will work well in private, public, and commercial spaces.

Package contents

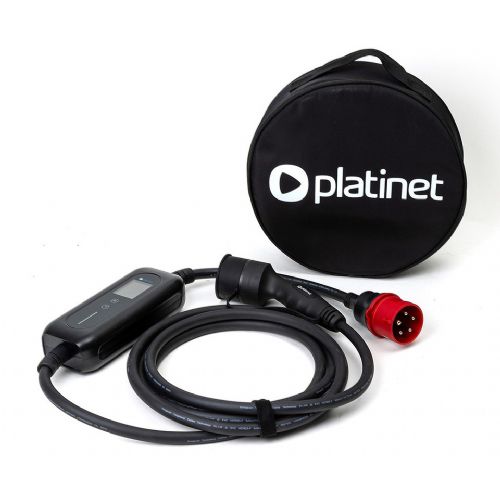

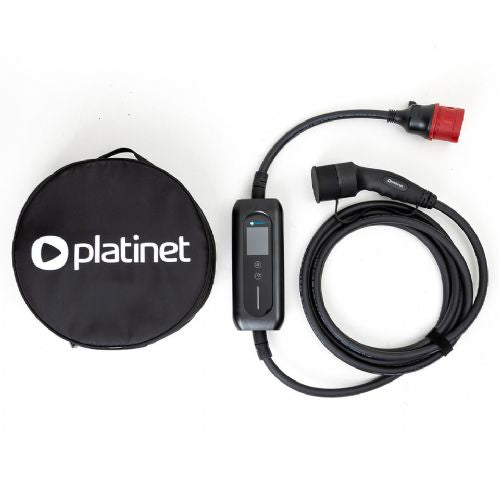

• charger for electric / plug-in hybrid vehicles Platinet PPCW5M22
• carrying/storage bag
• wall mounting screw
• instructions for use

Technical specifications

• Product type: portable charger for electric/plug-in hybrid vehicles
• Charger type: 3-phase red CEE (standard European plug)
• Connection: TYPE 2 (European standard connector)
• Compatibility (vehicles): all electric and hybrid vehicles
• Intelligent charging system: YES
• Intelligent communication: WIFI, Bluetooth
• App: Tuya Smart (free)
• Compatibility: Android, iOS
• Charging power adjustment: YES
• Smart options in the app: adjust current, set schedule, view charging history, smart notifications, control multiple devices,...
• Smart notifications: YES
• LCD display: YES (charging data display)
• Charging power: adjustable (max. 22 kW)
• Rated current: adjustable (default 32A)
• Input voltage: AC 230V 50Hz (3 phases)
• Cable insulation resistance: 500MOhm
• Contact resistance: 0.5 mOhm
• Residual current protection: Type (AC 30mA + DC 6mA)
• Housing flammability: UL94-V0
• Cable harness size: 5x6mm² + 1x0.75mm² (outer diameter: 16.2 mm)
• IP protection level: IP66 (device), IP54 (vehicle plug), IP44 (CEE plug)
• Certificate: TUV Rheinland
• Operating temperature: from -25°C to +45°C
• Operating altitude: <2000m
• Protections and safety features: leakage protection, overvoltage protection, low voltage protection, overload protection, lightning protection, overheating protection, self-testing,
• Cable length: 5 m
• Color: black
• Dimensions (charger): 512 x 24 x 9.5 cm
• Dimensions (charging case): 24 x 9.5 x 6 cm
• Dimensions (packaging): 36.5 x 36.5 x 12 cm
• Weight (charger): 3.9 kg
• Weight (with packaging): 4.45 kg
• EAN: 5907595462334
• Warranty: 24 months
