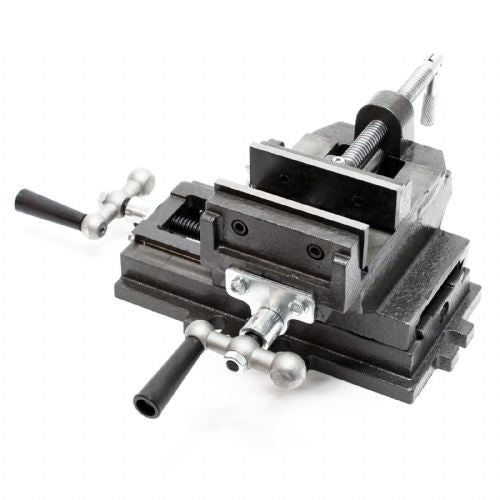

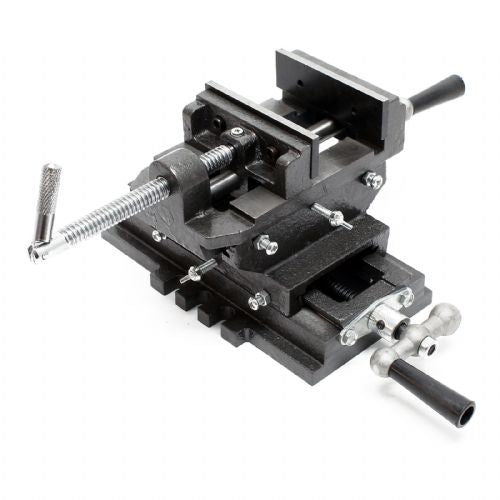

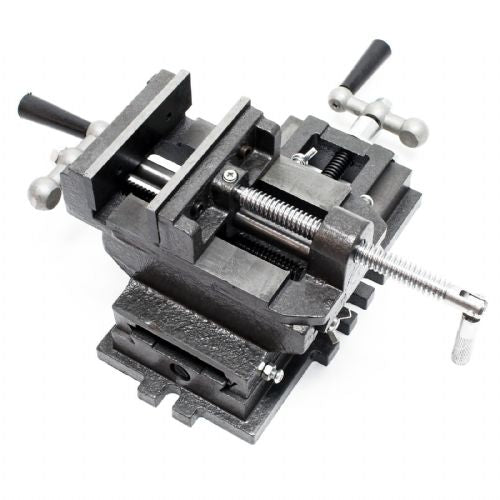

Machine cross vice 2-axis 75mm – Precision and stability for your workshop
Looking for a reliable tool that will take your drilling and milling precision to the next level? The 2-axis 75mm Machine Cross Vise (SKU: 61093) is an indispensable tool for both professional workshops and passionate DIY enthusiasts. With its robust design and dual-axis adjustability, it enables extremely precise positioning of workpieces without the need for constant re-clamping.
This high-quality cross vice is designed to hold materials securely and stably in tough jobs. Its compact design makes it ideal for mounting on bench drills, milling machines or conventional workbenches. Whether you're working in your home garage or in an industrial environment, this dual-axis vice will make your work faster, safer and significantly more precise.
Why choose a 2-axis machine cross vice 75mm?
The main advantage of a dual-axis vise is its functionality. Once you have clamped the workpiece, you can move it precisely left-right and forward-backward using two axes. This is extremely useful when drilling several consecutive holes in the same line or when milling precise grooves. Forget about time-consuming releasing, moving and re-clamping the material - with a simple turn of the levers you will achieve perfect precision in a matter of seconds.
It is made of solid cast iron, which ensures a high level of stability and resistance to vibrations during work. The hardened jaws, 75 mm wide, provide a strong and secure grip without damaging your workpiece.
Key features and benefits

Two-axis adjustability (2-axis system): Allows precise movement of the workpiece along the X and Y axes, ideal for serial drilling and milling.
Exceptional stability: The robust cast iron construction effectively dampens vibrations and ensures a long tool life.

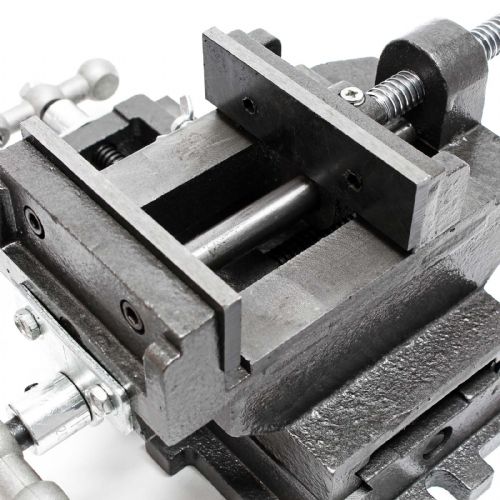

Hardened jaws: 75 mm wide jaws provide maximum clamping force and prevent material slipping.
Versatile use: The perfect accessory for pillar drills, milling machines or as a standalone tool on a workbench.
Mobility and practicality: Due to its convenient size and optimal weight, the vice is easy to carry and suitable for mobile use in the field.
Easy to use: Suitable for both professional craftsmen and hobbyists who value precision.

Technical data and specifications
This machine cross vice boasts compact dimensions that allow for easy installation on most standard work surfaces and machines:

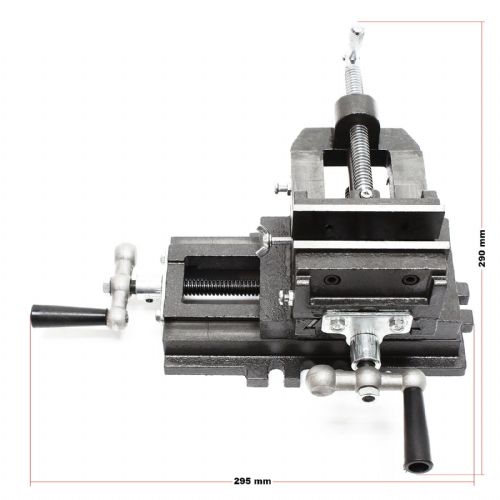

Overall dimensions: 295 x 290 x 120 mm

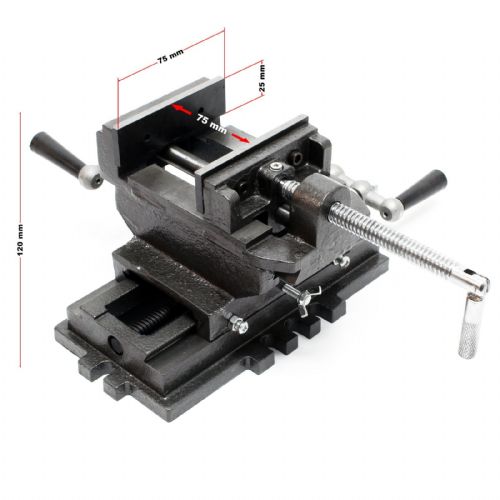

Jaw width: 75 mm
Clamping width (span): 75 mm
Clamping depth: 37 mm
Material: Robust cast iron with hardened jaws
SKU: 61093

The perfect tool for precision drilling and milling
When working with metal, wood or plastic, precision is key. It is difficult to achieve millimetric accuracy with a regular vice, as it requires manual movement of the entire tool. The 2-axis 75mm machine cross vice solves this problem. With threaded spindles, you can move the workpiece with extreme finesse. This allows you to create precise grooves, straight lines and perfectly aligned holes.
Thanks to the mounting grooves on the base, the vice can be quickly and securely screwed onto a workbench or drill press base. Invest in a tool that will save you time, reduce waste, and improve the quality of your finished products.
Frequently Asked Questions (FAQ)
What jobs is this cross vice best suited for?
The vice is particularly useful for precision drilling and milling work where the workpiece needs to be moved along two axes (X and Y) without re-clamping. It is excellent for drilling multiple holes in the same direction, milling grooves and precision machining of wood, metal or plastic.
Can this vice be attached to any drill press?
Yes, thanks to its universal dimensions (295 x 290 x 120 mm) and stable base with mounting grooves, it can be easily mounted on most standard workbenches and column or bench drilling machines.
What is the difference between a regular and a cross vice?
A regular vice only allows for fixed clamping in one place. A cross vice has a built-in two-axis mechanism with handles that allows for precise movement of the clamped material forward/backward and left/right, which significantly facilitates precise work without moving the machine itself.


Responsible persons:
WILTEC - WilTec Wildanger Technik GmbH Wilhelm-Lexis-Str. 8 52249 Eschweiler Germany service@wiltec.info (+49) 2403-9779770
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Secure the vice firmly to a stable work surface.
• Place the workpiece between the jaws.
• Tighten the jaws evenly with the spindle.
• Check the stability of the workpiece.
• Adjust the vice to the desired position using longitudinal and transverse movement.
• After adjustment, fasten all adjustment elements.
• Check the stability of the vice before starting work.
• Clean the vise and remove any shavings after use.

Useful tips for work:
• Clamp the workpiece as deeply as possible in the jaws.
• Clean the jaws and workpiece before clamping.
• Make the movements evenly and without excessive force.
• Use protective pads for soft materials.
• Clean and lightly lubricate the spindles regularly.
• Remove shavings with a brush.
• For precise work, check the correct alignment of the vise.

Warnings:
• The vice must be securely fastened before use.
• Do not exceed the capacity of the vise.
• Do not insert your fingers between the jaws.
• Do not use a damaged vice.
• Do not use extensions to tighten the spindles.
• Stop the machine before adjusting the vise.
• Use safety glasses.
• Do not remove filings with bare hands.

Same summary

The 2-axis 75mm machine vice is designed for users who undertake precise mechanical work in smaller workshops, hobby programs or for fine repairs. The two axes allow for good flexibility for easier positioning of the workpiece, which is very useful when machining, drilling or grinding small pieces. Due to its compact design, it is mainly suitable for processing smaller metal or wooden parts; for larger, heavier pieces or intensive professional use, however, the jaw opening and basic stability could be a limitation. It is especially useful in environments where accuracy and the ability to quickly adjust the position of the material are important.

Recommendation source: Enaa guides and team experience.

User view

This cross vice is often used by DIY enthusiasts, modelers and technicians who need a reliable tool to hold workpieces in place for a variety of tasks, such as drilling holes, grinding or even assembling small components. Its 2-axis travel offers greater freedom of movement, which is especially useful when repeatable and precise positioning is required.

When choosing such products, users primarily appreciate the perfect balance between functionality and robustness, and they also have confidence in the Wiltec brand, which in the world of tools is considered a proven choice among home and semi-professional users.

Why buy at Enaa

On Enaa you will find a carefully selected range of vices, supported by professional descriptions and practical tips for use, and the platform also allows you to easily compare different models based on user needs and type of task.

Answers to frequently asked questions

Is this machine cross vice suitable for use on all types of drilling machines?

The vise is compatible with most bench and standard drilling machines, but it is always recommended to check the dimensions of the mounting slots and the maximum jaw opening compared to the machine and workpiece.

What weight and dimensions of the workpiece can the vise safely hold?

It works best for light to medium-heavy parts of smaller dimensions, where the total weight and size do not exceed the capacity of the vise and ensure stable clamping during processing.

Can the vice also be used for working with wood and plastic?

Yes, it can be used for wood and plastic, especially for smaller pieces, but it is recommended to protect the material from mechanical damage caused by the metal jaws.

How is the maintenance of a machine cross vice carried out?

Maintenance includes regular cleaning of guides and calipers, occasional lubrication of moving parts, and checking the tightness of screws to ensure safe use and long-term accuracy.

When to choose a 2-axis cross vice instead of a basic model?

A 2-axis cross vice is especially recommended when you need precise movement of the workpiece in both directions or you often perform serial drilling, grinding and similar tasks.

Description updated: April 2026
