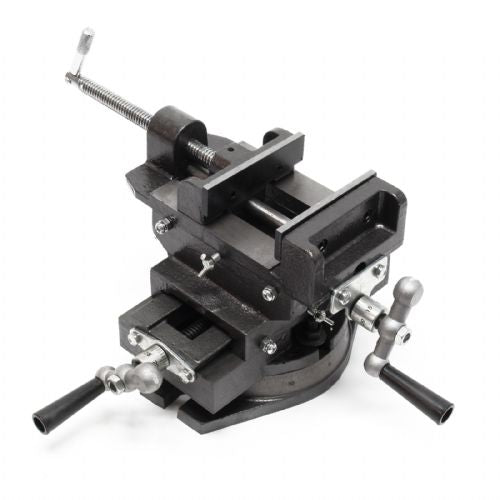

Machine cross vice 2-axis 100mm rotatable – Professional precision for your workshop
Are you looking for a reliable, stable and extremely precise tool for your workshop, home machine shop or industrial plant? The 2-axis 100mm rotating machine vice (SKU: 61013) is a top-notch clamping device that provides maximum stability and millimetre-precision for every project. Whether you are working on model making, precision milling, drilling or grinding, this robust 2-axis vice provides complete control over your workpiece.
Thanks to its clever dual-axis design and 360-degree rotation, this machine vice makes working on drilling and milling machines much easier. Forget about time-consuming workpiece repositioning - with this cross vice you will get the job done faster, safer and with unparalleled precision.
Why choose a 2-axis rotating cross vice with a width of 100 mm?
Every craftsman knows that quality clamping is the key to successful work. This machine cross vice is made of solid cast iron, which ensures its exceptional strength and long service life. With its weight of 12 kg, it effectively dampens vibrations, which is crucial for precise drilling and milling. It is compatible with almost all standard workbenches and machines, making it extremely versatile.
The main advantage of the cross vice is the ability to move the workpiece along two axes (X and Y) without the need to open the jaws. This means that you can fix the workpiece only once, and then move it precisely left-right or forward-backward with the levers. The additional rotating plate allows for complete adjustment of the machining angle.
Key product features and benefits

Two-axis movement (2-axis system): Allows precise positioning of the workpiece along two axes. The lateral travel is 90 mm, which allows a wide range of work without moving the entire vice.
360° rotating base: Thanks to the rotating table with a base diameter of 140 mm, the vice can be rotated a full 360 degrees, ensuring maximum flexibility for demanding angle processing.
Robust cast iron construction: High-quality cast iron ensures exceptional stability, wear resistance and a long service life even in daily professional use.
Safe and stable clamping: The strong clamping jaws with a width of 100 mm and a maximum span of 72 mm offer a firm grip that prevents any slipping of the workpiece.
Versatile use: The perfect choice for fine mechanics, model making, home hobbies, craft workshops and industrial use for drilling, grinding or milling.
Easy assembly: The vice is designed to be quickly, easily and securely attached to most standard workbenches and drilling machines.

Technical specifications
This machine cross vice features precise dimensions and robust materials that ensure professional results:



Parameters
Specification




Jaw width:
100mm


Maximum range (clamping):
72 mm


Base diameter:
140mm


Lateral travel (axial adjustment):
90mm


Material:
Cast iron (robust and stable)


Weight:
12 kg


Rotation:
360° rotatable


SKU:
61013



Practical application: Who is this cross vice suitable for?
Whether you are a professional metalworker or a passionate DIYer, this 2-axis machine vice will quickly become an indispensable part of your equipment. It can be used for:

Precision drilling: Ideal for drilling consecutive holes with precise spacing without re-clamping.
Milling on bench drills: Allows controlled movement of the workpiece under the milling head.
Modeling and fine work: Perfect for processing small and demanding parts where stability is key.

An investment in a quality cast iron vice pays off on your first project where a high level of precision is required. Order your 2-axis 100mm machine vice today and take the quality of your work to the next level!
Frequently Asked Questions (FAQ)
1. What are the advantages of a 2-axis cross vice compared to a regular vice?
The 2-axis cross vice allows you to move the workpiece in two axes (forward/backward and left/right) using threaded levers without having to unclamp the workpiece. This ensures extreme precision when drilling multiple holes in a row or for simpler milling.
2. Is this vice suitable for heavy industrial work?
Yes, the vice is made of solid cast iron and weighs 12 kg, which ensures high stability and resistance. It is suitable for both more demanding home projects, model making, as well as for professional use in craft workshops and industry.
3. How does the 360-degree rotating mechanism work?
The vice has a round base with a diameter of 140 mm, which allows the entire vice body to rotate 360 degrees around its axis. Once the desired angle is reached, the vice is simply locked in place, allowing you to work at any angle without moving the base mounting on the table.


Responsible persons:
WILTEC - WilTec Wildanger Technik GmbH Wilhelm-Lexis-Str. 8 52249 Eschweiler Germany service@wiltec.info (+49) 2403-9779770
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Secure the vice firmly to a stable work surface.
• Place the workpiece between the jaws.
• Tighten the jaws evenly with the spindle.
• Check that the workpiece is securely clamped.
• Adjust the vice with longitudinal and transverse movement.
• Set the rotating part to the desired position.
• After adjustment, tighten all fasteners.
• Check the stability of the vice before starting work.
• Clean the vise and remove any shavings after use.

Useful tips for work:
• Clamp the workpiece as deeply as possible in the jaws.
• Clean the jaws and workpiece before clamping.
• Make the movements evenly and without excessive force.
• Use protective pads for soft materials.
• Clean and lightly lubricate the spindles regularly.
• Check the alignment of the vise before performing precision work.
• Always secure the rotating mechanism before working.
• Remove shavings with a brush.

Warnings:
• The vice must be securely fastened before use.
• Do not exceed the capacity of the vise.
• Do not insert your fingers between the clamping jaws.
• Do not use a damaged vice.
• Do not use extensions to tighten the spindles.
• Stop the machine before adjusting the vise.
• Stop the machine before adjusting the rotating part.
• Use safety glasses.
• Do not remove filings with bare hands.

Same summary

The 2-axis 100mm rotating machine cross vice enables stable and flexible fixation of various workpieces, especially when drilling, grinding or small assembly work. Due to the possibility of bidirectional movement and rotation, it is most useful for tasks where the precise position of the workpiece at different angles is required. It is mainly suitable for home and semi-professional workshops and hobby use, where smaller metal or wooden pieces are processed. For very demanding metalworking tasks with high forces or larger workpieces, the jaw width and total weight of the vice may be a limitation.

Recommendation source: Enaa guides and team experiences.

User view

This type of vice is often used by home craftsmen, technology enthusiasts and those who occasionally work on metal or wood in their workshops or garages. In practice, it is particularly useful where the workpiece needs to be rotated or moved quickly and precisely, e.g. when multiple rotations are required during processing or when successive transitions from one process to another.

Wiltec brand products are known for providing a reliable foundation and a balanced ratio between robustness and usability in various environments.

Why buy at Enaa

When shopping at Enaa, you can count on a reliable selection of products suitable for the various needs of home and semi-professional workshops, and you can quickly find solutions supported by a team with expert knowledge in the field of tools and processing aids.

Answers to frequently asked questions

What type of workpiece is best suited for this vice?

The 2-axis 100mm rotating machine cross vice is particularly suitable for small to medium-sized metal and wooden workpieces, where adjustment along two axes and quick adjustment of the working angle are important.

Can the vice be used on any drilling machine?

It works best on standard drill presses and workbenches with a suitably flat mounting surface, but we recommend checking the compatibility of the mounting holes with your equipment before use.

Is the rotary base also suitable for processing under heavy loads?

The rotary base allows for flexibility, but is recommended primarily for medium-heavy tasks; with greater forces or vibrations, care must be taken to ensure proper tightening and stability of the vice.

How to keep a vice in good condition over a long period of time?

Regularly remove dust and material residues, periodically lubricate guides and moving parts, and check the jaws for damage.

Is this vice suitable for precision electronic repairs?

For very fine repairs in electronics, the vice may be a bit too large, so in this case we recommend more compact models with softer jaws.
