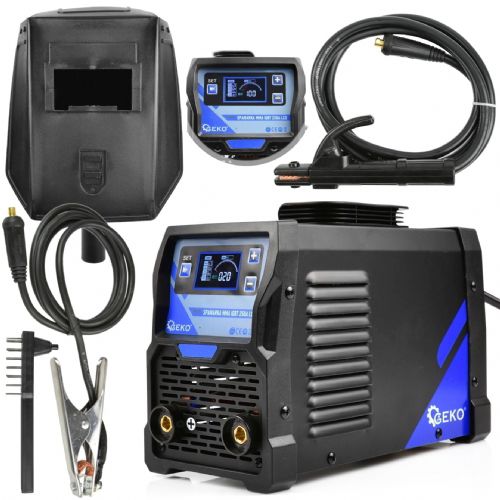

Inverter MMA IGBT 250A LCD welding machine (SKU: G80086) – Superior power and precision for professional welding
Are you looking for a reliable, powerful and easy-to-use welding machine that will meet even the most demanding challenges? The Inverter MMA IGBT 250A LCD welding machine (SKU: G80086) represents the pinnacle of modern welding technology. It is designed for both experienced masters and home craftsmen who demand uncompromising quality, high efficiency and long service life from their tool.
This advanced inverter welder is specially optimized for welding with rutile and basic electrodes, allowing you to work with extreme precision on stainless steel and cast iron. With the help of state-of-the-art IGBT technology and advanced automatic functions, you will achieve professional results faster, safer and with significantly less effort.
---
Why choose an IGBT 250A inverter welding machine?
Modern welding requires equipment that can adapt quickly to different working conditions. The G80086 welding machine combines an outstanding 250A power with advanced electronic components that ensure a stable welding arc and minimal spatter. Thanks to its lightweight and compact design, the machine is extremely mobile, which means that it can be easily carried and used in the field, in the workshop or at height.
The main advantage of the device is the built-in IGBT (Insulated Gate Bipolar Transistor) technology. Four high-performance IGBT modules and four power LEDs ensure stable current distribution, which allows continuous and efficient welding with electrodes up to 4 mm thick. Forget about overheating and voltage fluctuations - this device is built for stable operation under load.
---
Key features and benefits that make work easier
To make welding as simple and efficient as possible, the device is equipped with three key automatic functions that optimize the entire process:

Hot Start: This function temporarily increases the welding current above the set value when the arc is ignited. This prevents the electrode from sticking to the workpiece at the very beginning and makes it much easier to start welding.
Anti Stick: If a short circuit occurs and the electrode sticks to the material, the system automatically reduces or completely interrupts the welding current and voltage. This allows you to easily remove the electrode without damage and continue working.
ARC Force: This function stabilizes the welding arc regardless of the distance between the electrode and the material. Decreasing the value gives a softer arc with a shallower penetration depth, while increasing it gives a deeper penetration and the possibility of welding with a very short arc (at maximum setting you can even push the electrode into the melt).

---
Technical features and specifications
The inverter MMA IGBT 250A features top technical specifications that ensure smooth professional use:

Model and SKU: G80086
Supply voltage: 230 V / 50/60 Hz
Power consumption: 7.1 kVA
No-load voltage: 60 V
Welding current range: 20 - 250A
Duty cycle: 60% at 250A, 100% at 193A
Power factor: 0.9
Electrode size: 1.6 mm - 4.0 mm
Cooling: Efficient fan cooling with improved heat dissipation system
Protection class: IP21S
Insulation class: H

---
Improved cooling system for long-term use
One of the biggest problems with cheaper welding machines is overheating during intensive work. The G80086 welding machine has a revolutionary improved cooling system. Extra-large heat sinks (heat sinks) are installed, which, in combination with a powerful fan on the back of the housing, ensure continuous air flow. Heat is effectively removed from the inside of the housing, which extends the life of the device and allows for longer work cycles without interruptions.
---
Easy operation with LCD display
Forget about guessing the settings. The machine is equipped with an extremely clear, intuitive control panel and a large, bright LCD screen. This allows you to accurately monitor and adjust the welding current in real time. Even when working in poorly lit areas, you will always see the settings clearly and distinctly.
---
Frequently Asked Questions (FAQ)
1. What materials can I weld with this machine?
This inverter MMA welder is suitable for welding with rutile and basic electrodes. It is excellent for welding structural steel, stainless steel (inox) and cast iron (gus).
2. What is the maximum electrode thickness that the device supports?
The machine supports electrodes from 1.6 mm to 4.0 mm in size. Thanks to four IGBT modules and stable current, welding with 4 mm electrodes is extremely efficient and smooth.
3. How does the Hot Start feature help beginners?
The Hot Start function increases the current for a short time when the electrode comes into contact with the material. This prevents the unpleasant sticking of the electrode to the surface, one of the most common problems for beginners, and allows for an immediate and clean arc ignition.
---
Presentation of the operation (Video)
Watch the demonstration and see the device's exceptional power and stability in practice:
Click here to watch a video demonstration of the welding machine on YouTube


Responsible persons:
GEKO - GEKO SPÓŁKA Z OGRANICZNĄ ODPOWIEDZIALNOŚCIA SPÓŁKA KOMANDYTOWA, ul. Spacerowa 3, 97-500 Kietlin, Poland, (+48) 446824004, geko@geko.pl
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Place the appliance in a stable and dry place with sufficient ventilation.
• Connect the welding cables and ground and check all connections.
• Connect the appliance to a suitable electrical supply.
• Set the appropriate welding current on the LCD display according to the electrode and material.
• Put on the appropriate protective equipment and start welding.
• After finishing work, turn off the appliance and let it cool down.

Useful tips for work:
• Adjust the welding current to the electrode diameter and material.
• Keep the work area clean, dry and well ventilated.
• Check welding cables regularly for damage.
• Do not cover the ventilation openings while working.
• After use, clean the appliance and store it in a dry place.

Warnings:
⚠️ Always use a welding mask, protective gloves and appropriate protective clothing when welding.
⚠️ Welding creates intense light, heat, sparks and harmful fumes.
⚠️ Do not weld near flammable materials or liquids.
⚠️ Do not use the appliance in wet or very humid conditions.
⚠️ Before cleaning or maintaining the appliance, turn it off and unplug it from the electrical outlet.
⚠️ Do not touch bare electrical connections and welding electrodes with unprotected hands.
⚠️ Keep the appliance out of the reach of children.

Same summary

The inverter MMA IGBT 250A LCD welding machine is designed for those who need a simple solution for basic repairs and occasional electrode welding. Due to its very clear focus on MMA, it is mainly suitable for home craftsmen, beginners or those who use the machine for less demanding projects with steel and iron. The device is not intended for users looking for TIG or MAG functions, so for more precise or very specialized welds we recommend considering other options. One of the useful features is the practical size and easy movement, as you can easily take it into the field.

Recommendation source: Enaa guides and team experiences.

User view

This welding machine is most often used by home users who want to occasionally repair a fence, make small metal structures or do chores in the garden and workshop. Its value lies primarily in its ease of use and sufficient power for typical household welding, where there is no need for major special features.

The value and reliability of Geko brand products are appreciated by those looking for proven solutions for practical everyday use.

Why buy at Enaa

On Enaa, you get all the important information about the selected welding devices clearly presented, and when comparing, you can quickly get a complete picture of the functionality and ease of use for home projects. In addition to professionally prepared content, the products are carefully selected for users of all experience levels, which makes the decision easier.

Answers to frequently asked questions

Does this machine also allow TIG or MAG welding?

No, this model is intended exclusively for welding with an MMA electrode and does not support TIG or MAG welding modes.

What materials is this welding machine best suited for?

The machine works best when welding basic steel and iron parts, such as fences, profiles and structures in a domestic environment.

How difficult is it to use for a complete beginner?

Due to its simple design and easy settings, it is also suitable for those who have no experience with welding.

Is the device lightweight and easy to carry?

Yes, its compact design makes it easy to carry and use in different locations, which is very convenient for home craftsmen.

What safety precautions should I take when using it?

It is recommended to use basic safety equipment, such as a protective mask, gloves and appropriate clothing, and to strictly follow the manufacturer's safety instructions.

Description updated: April 2026
