PRO 8000mAh 16-line green laser level with remote control 4x360° ZK04CG
Looking for ultimate precision and reliability in construction and assembly work? The PRO 16-line green laser level ZK04CG with 8000mAh battery capacity and remote control is the perfect tool for professional builders, drywallers, tilers and demanding DIYers. With four 360-degree green laser lines, it covers the entire space, allowing for quick, easy and extremely accurate alignment of walls, ceilings and floors at the same time.
Thanks to the advanced green laser beam technology from Osram, which is up to four times more visible than red, and the robust housing with IP54 protection, this leveler can withstand even the most demanding conditions on the construction site. The included remote control allows you to operate the device from a distance of up to 10 meters, which significantly speeds up your work and increases productivity.
Key benefits and features of the ZK04CG laser level
1. Full 4x360° projection with Osram technology
The level projects 4 independent 360-degree laser planes (two horizontal and two vertical), allowing for complete coverage of the room. The high-quality green Osram laser lines provide exceptional sharpness and visibility even in brighter rooms.
2. Smart remote control and line switching
With the remote control, you can easily select individual laser lines or temporarily switch them off from a distance of up to 10 meters. No more unnecessary walking to the device - you can adjust all settings directly from where you are measuring.
3. Exceptional autonomy with 8000 mAh battery

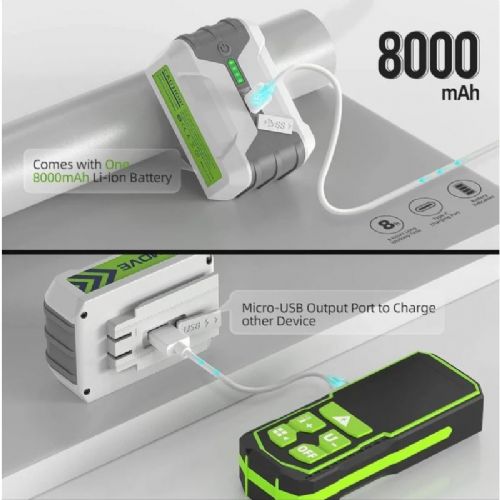

The powerful removable lithium-ion battery with a capacity of 8000 mAh provides up to 8 hours of continuous operation with all laser beams turned on. It is charged via a modern Type-C connector, and in case of emergency it can also be used as a portable battery (powerbank) to charge other devices via a micro USB output.
4. Self-leveling and manual operation mode
The device boasts a fast self-leveling time (only 3 seconds) within a range of ±3°. If the device is tilted outside this range, you are alerted by an audible signal and the laser beam flashes. To work at any angle, simply lock the pendulum and switch to manual mode.
5. Multi-purpose magnetic holder and lifting base
The strong magnetic mount allows for quick attachment to metal structures, making it ideal for installing drywall profiles or ceiling coverings. The fine adjustment buttons allow you to precisely move the laser line vertically, horizontally or rotate it 360°.
Technical features and specifications

Projection: 4 green lines, 4 x 360° (16 lines)
Beam technology: Osram green laser beam (wavelength 505-520 nm)
Laser class: Class 2 (IEC/EN60825-1/2014), output power < 1 mW
Leveling accuracy: ± 2 mm at 10 m (± 1/13" at 10 m)
Leveling time and compensation: Fast self-leveling in 3 seconds, range ±3°
Working range: 30 m (100 LUX), extendable to 60 ms with pulse mode and Huepar laser detector (LR-6RG, LR-5RG or LR-8RG)
Power supply: Removable Li-ion battery 3.7 V / 8000 mAh with Type-C charging port and status indicator
Operating time: Up to 8 hours of continuous operation with all beams active
Robust protection: IP54 (resistant to dust, splash water and impacts from heights of up to 1.2 m)
Tripod thread: Standard 1/4"-20 and compatible with 5/8"-11 via bracket
Operating temperature: From -10 °C to +45 °C
Dimensions and weight: 24 cm * 26.8 cm * 11.5 cm; weight 2.31 kg

https://youtu.be/1Ox88Ug2Pa0
What does the package contain?
When you purchase the Huepar Pro ZK04CG professional laser level, you receive a complete set of equipment, ready for immediate field work:

1 x Huepar Pro ZK04CG laser level
1 x Rechargeable lithium-ion battery 8000 mAh
1 x Remote control
1 x 360° magnetic mount
1 x Lifting base
1 x Power adapter
1 x Type-C power cable
1 x Magnetic target
1 x Green safety glasses
1 x Robust case for safe transport and storage

Frequently Asked Questions (FAQ)
How does pulse mode work and when to use it?
Pulse mode is used when working outdoors or in very bright areas where the laser beam is no longer clearly visible to the naked eye. When you activate pulse mode (which can also be done via the remote control), the working range of the laser is extended from 30 meters to 60 meters with the help of a compatible Huepar laser receiver (e.g. LR-6RG, LR-5RG or LR-8RG).
Can I charge the battery while the leveler is operating?
Yes, the device supports direct charging via the Type-C connector. You can charge the battery via a power outlet, car charger, or power bank while the device continues to operate, preventing unwanted interruptions to work on the construction site.
What does the laser class 2 warning mean?
The laser level uses a Class 2 laser, which means that the beam output is less than 1 mW and is safe for accidental eye exposure (due to the natural blinking reflex of the eye). However, never point the laser beam directly into the eyes of people or animals, and for optimal protection and better visibility of the beam, use the supplied green glasses while working.


Responsible persons:
HUEPAR - DELARI GmbH – Kirchstraße 3 – 56242 Selters Deutschland, Germany, info@delari-gmbh.de, (+49) 26263494093
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Charging and inserting the battery: Before first use, charge the high-capacity 8000mAh lithium-ion battery with the included charger until the indicator shows full charge. Insert the battery into the dedicated slot on the device.
• Setting up the level: Place the level on a flat surface or screw it onto a construction tripod, wall magnetic mount or lifting touch platform.
• Power on and self-leveling: Turn the main switch to the on position. The device will automatically level the lines within the self-leveling range (up to ±3°). If the surface is too tilted, the laser will flash as a warning.
• Activating 4x360° lines and using the remote: By pressing the touch buttons on the side of the housing or using the included wireless remote, you activate the full 360-degree planes (two horizontal and two vertical lines that cover the entire space around and above you).
• Manual Mode (for slanted lines): To mark slanted lines (e.g. when installing stairs or railings), activate the pendulum lock and set the desired jewelry manually.

Useful tips for work:
• Premium 8000mAh battery for long-lasting work: The extremely large battery capacity ensures multi-day autonomy without the need for constant charging, which is ideal for all-day construction sites.
• Extremely bright green diodes (4x more visible): Green laser beams are much more visible to the naked eye than classic red ones, even in bright daylight or at greater distances.
• Complete 4x360° space coverage: Four full 360-degree lines allow simultaneous transfer of points to the floor, all four walls and the ceiling, which significantly speeds up any construction or tradesman task.
• Convenient remote control: The wireless remote allows you to switch between individual lines remotely, avoiding moving and unhooking the level on the tripod.
• Robust protection and housing: The durable design with dust and water protection (IP standard) reliably protects the sensitive optics in demanding field conditions.

Warnings:
The laser device belongs to laser class 2. Never look directly into the switched on laser beam and do not point it at the eyes of people or animals, as this may cause serious damage to your eyesight!
• Securely lock the pendulum during transport: Before storing the level in a protective case or transporting it between jobsites, be sure to lock the pendulum mechanism to prevent damage to the sensitive calibrated optics.
• Protection against drops and impacts: The measuring instrument is a high-precision device; be careful not to drop it on the ground or against hard objects, as an impact may destroy the factory calibration.
• Use in appropriate weather conditions: Despite its resistance to dust and splash water, do not leave the device in heavy rain or exposed to direct moisture.
• Proper battery maintenance: Charge the lithium-ion battery with the included original charger and do not leave it completely discharged for a long time.
• Keep out of reach of children: Store professional measuring tools in a dedicated case out of reach of small children.
