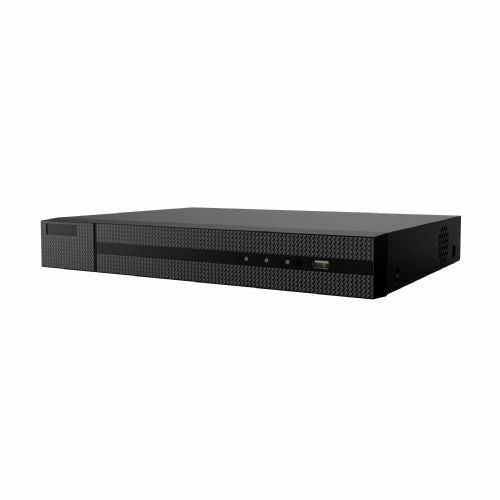

The HiLook NVR IP NVR-104MH-K/4P digital video recorder for video surveillance system features 4 channels, Plug&Play function with 4 PoE power supply interfaces. It supports IP cameras up to 12 MP resolution, and the HDMI output offers playback resolutions up to 4K. It uses an advanced AI system that automatically optimizes security and reduces manual work.

The HiLook NVR IP NVR-104MH-K/4P digital video recorder for video surveillance system features 4 channels, Plug&Play function with 4 PoE power supply interfaces. It supports IP cameras up to 12 MP resolution, and the HDMI output offers playback resolutions up to 4K. It uses an advanced AI system that automatically optimizes security and reduces manual work.

• Up to 4-channel IP camera inputs, plug & play with 4 Power over Ethernet (PoE) ports
• Video formats H.265+/H.265/H.264+/H.264
• Decoding capacity: 1 channel at 12 MP, 2 channels at 8 MP, 4 channels at 4 MP, 8 channels at 1080p
• Up to 40 Mbps incoming bandwidth
• Use HiLook AI technology to reduce manual labor and security costs



Artificial Intelligence:

- The system can recognize faces and detect movement (system 2.0)

Video and audio:

- IP video input: 4-channel
- Incoming bandwidth: 40 Mbps
- Outgoing bandwidth: 80 Mbps
- HDMI output: 1-channel, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA output: 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video output mode: HDMI1/VGA simultaneous output
- CVBS output: not available
- AUDIO output: 1-channel, RCA (linear, 1 kΩ)
- Two-way audio: 1-channel, RCA (2.0 Vp-p, 1 KΩ, using audio input)

Decoding:

- Format: H.265/H.265+/H.264+/H.264
- Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback: 4-channel
- Decoding settings:
AI on: 1 channel at 12MP (30fps)/1 channel at 8MP (30fps)/3 channels at 4MP (30fps)/6 channels at 1080p (30fps)
AI off: 1 channel at 12MP (30fps)/2 channels at 8MP (30fps)/4 channels at 4MP (30fps)/8 channels at 1080p (30fps)
- Stream type: video and audio
- Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network:

- Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

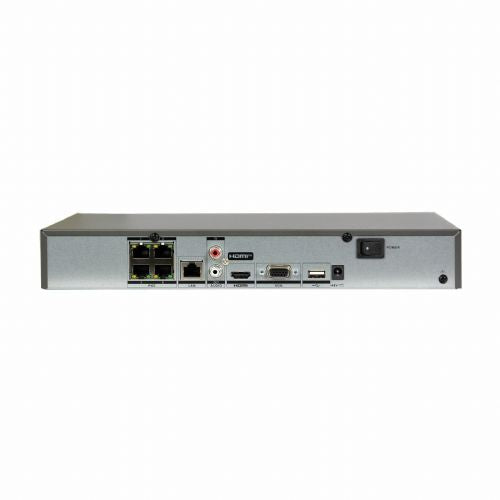

- Network interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- API: ONVIF (profile S/G); SDK; ISAPI

PoE (Power Over Ethernet):

- Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power supply: ≤ 50W
- Standard: IEEE 802.3af/at

Other installed interfaces:

- SATA: 1x
- Capacity: up to 10TB capacity for each hard drive
- USB interface:
Front panel: 1x USB 2.0
Rear panel: 1x USB 2.0

General:

- Supported graphical interface language: English, Slovenian and others
- Power supply: 48 V DC, 1.35 A
- Consumption: ≤ 10 W (without hard drive, PoE off)
- Operating temperature: -10 °C to 55 °C - humidity from 10% to 90%
- Color: black

Package includes: 1x HiLook video recorder 4-channel NVR IP NVR-104MH-K/4P, 1x Instructions

Dimensions: 320 x 240 x 48 mm
Weight: 2.1900 kg
Warranty: 12 months

Manufacturer
HiLook
Hangzhou Hikvision Technology Co.,
Ltd.,700 Dongliu Road,Binjiang, Area, Hangzhou,Zhejiang, China
info@hikvision.com

Data of the responsible person in the EU:
HiLook
Hikvision Europe
Dirk Storklaan 3, 2132 PX Hoofddorp, The Netherlands
sales.eu@hikvision.com

Same summary

HiLook video recorder 4-channel PoE NVR IP NVR-104MH-K/4P is intended for users who want to independently assemble a video surveillance system or upgrade an existing setup. With four channels, it allows monitoring of several different rooms or entrances and is especially suitable for smaller facilities, such as a house, apartment or small office. Camera power is available via PoE, which simplifies installation and ensures greater network stability. We would only like to point out that there are four input channels, so it is not the most suitable if you plan to expand the surveillance system in the future.

Recommendation source: Enaa guides and team experiences.

User view

The product is mostly chosen by those who already have some experience with video surveillance and are looking for a flexible solution where they want to choose or upgrade cameras according to the needs of their home or small office. Due to the possibility of connecting up to four IP cameras and PoE power supply, it is often used by households who want to monitor the entrance, yard or interior spaces, as well as individuals who want to store important footage in one place and access it remotely later. Users note that the HiLook brand is known as a reliable choice with a completely solid balance between flexibility and ease of use for home use.

Why buy at Enaa

At Enaa, you can count on comprehensive professional advice regarding the compatibility of recorders with the cameras from our range and a clearly presented selection of recorders, which makes it easier for you to decide on the setup of your security system.

Answers to frequently asked questions

Is this recorder suitable for starting video surveillance at home?

Yes, the recorder is suitable for the initial setup of a simple home video surveillance system, if you are willing to choose and connect the appropriate IP cameras yourself depending on the space and needs.

What does it mean that a recorder supports PoE?

PoE means that the same cable provides both power and data transmission to compatible cameras, simplifying installation and reducing the need for additional power supplies.

What do I need to consider if I want to expand the system with more cameras later?

The recorder has four channels, so you can connect up to four IP cameras at the same time. If you need to monitor multiple areas in the future, we recommend considering a multi-channel model.

Does the recorder work even if I have different brands of cameras?

The recorder supports the ONVIF standard, which means it is compatible with most IP cameras from different manufacturers, but it is still recommended to check the details of each camera before purchasing.

What should I do if I want to access the recordings via the mobile app?

Most modern recorders, including this model, allow remote access to recordings via the official app, but setting up the feature requires properly setting up the network and internet connection.
