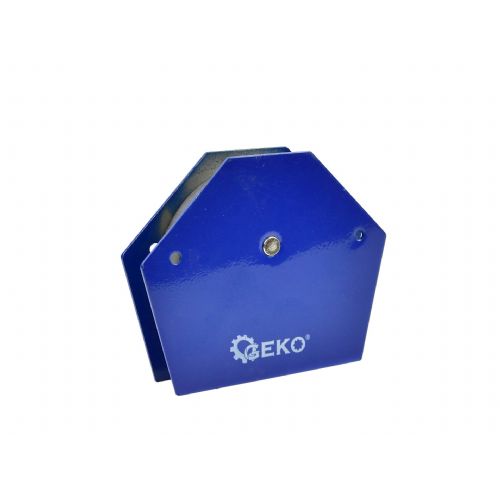

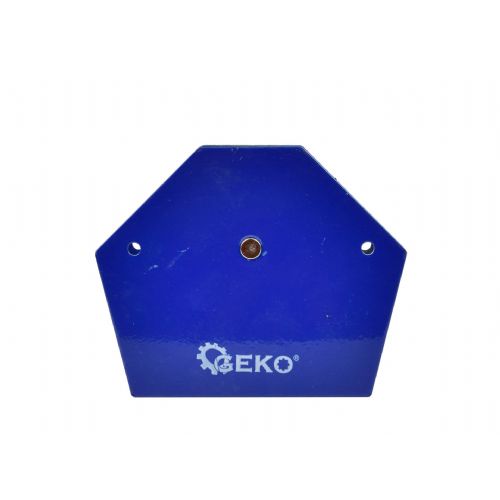

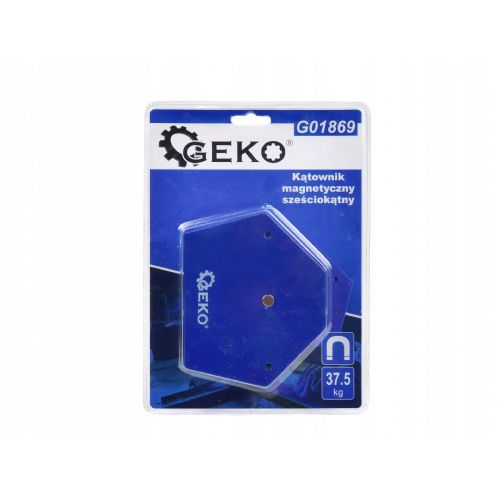

Hexagonal magnetic welding angle 37.5kg – SKU: G01869
Are you looking for a reliable assistant that will hold metal elements firmly in place during welding, soldering or assembly? The hexagonal magnetic welding square with a load capacity of up to 37.5 kg (SKU: G01869) is an indispensable tool for every professional workshop and home craftsman. Forget about inconvenient clamps and time-consuming adjustments - this powerful magnetic square allows you to work quickly, precisely and safely without the help of extra hands.
Thanks to its clever hexagonal shape, it offers exceptional versatility, allowing workpieces to be fixed at multiple angles. It is made of a premium, extremely strong magnet, which is additionally protected by a robust steel plate, ensuring long service life and resistance to mechanical damage.
This professional magnetic welding angle from the Magnetic Welding Angles category represents an ideal price-performance ratio. For only €15.99, you will significantly improve productivity, precision and safety when working with metal.
Main advantages and benefits of using
When working with metal profiles, pipes or plates, stability is key to achieving straight and solid welds. The 37.5kg Hexagonal Magnetic Welding Angle acts as your "third hand" in the workshop. Here are the key benefits of this premium tool:

Extreme versatility (6 different angles): Allows you to adjust the material at angles of 30°, 45°, 60°, 75°, 90° and 135°. This gives you complete freedom to assemble various metal structures and complex geometric shapes.
Exceptional gripping power (37.5 kg): The high attractive force ensures that heavy metal parts remain stable and completely stationary during processing, preventing slippage during welding.
Robust and safe construction: A powerful magnet is sandwiched between two solid steel plates, which protects the core from impacts, chips and high heat generated during welding or soldering.
Save time and increase safety: You can do the work completely alone, without the need for help from another person. This reduces the risk of material displacement and possible injuries at work.
Wide applicability: Ideal tool for electric arc welding, MIG/MAG, TIG welding, soldering, assembly of metal elements, marking, milling and lifting of flat metal parts.

Technical data and specifications
This professional magnetic square is characterized by compact dimensions and exceptional power, which allows easy handling even in tight spaces and hard-to-reach places.



Lifting capacity (load capacity)
37.5 kg


Height
110mm


Diameter
136 mm


Depth
24 mm


Weight
890g


Possible adjustment angles
30°, 45°, 60°, 75°, 90°, 135°



Versatile use in professional and home workshops
Whether you're assembling pipe structures, welding frames, or preparing materials for soldering, the hexagonal magnetic square ensures millimetric accuracy. With a wide range of angles (from sharp 30° to obtuse 135°), you'll be able to tackle even the most demanding projects with ease.
The outer steel protection ensures that metal shavings do not accumulate directly on the magnetic core, which makes cleaning after work much easier. Thanks to its compact weight of 890 g and ergonomic design, it is easy to carry and store in any tool case.
The investment in quality magnetic welding angles quickly pays for itself through time saved and reduced waste caused by misaligned angles. Order your 37.5kg Hexagonal Magnetic Welding Angle (SKU: G01869) today and get professional results with every weld!
Frequently Asked Questions (FAQ)
What angles can I set with this magnetic square?
This hexagonal magnetic square is extremely flexible and allows you to set materials at angles: 30°, 45°, 60°, 75°, 90° and 135°. This allows you to process both simple rectangular frames and more complex polygonal metal structures.
What is the actual load capacity of this welding magnet?
The angle boasts a strong attractive force and has a declared lifting capacity or load capacity of up to 37.5 kg. This is sufficient for extremely stable fixation of larger and heavier metal profiles, pipes and plates during processing.
Is the magnet protected from damage during welding?
Yes, the powerful internal magnet is securely mounted and further protected by an outer steel plate. This robust armor prevents direct impacts, protects against heat and chips, and significantly extends the tool's lifespan in demanding workshop conditions.


Responsible persons:
GEKO - GEKO SPÓŁKA Z OGRANICZNĄ ODPOWIEDZIALNOŚCIA SPÓŁKA KOMANDYTOWA, ul. Spacerowa 3, 97-500 Kietlin, Poland, (+48) 446824004, geko@geko.pl
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Place the magnetic angle on the metal elements that you want to hold in the correct position during welding.
• Select the appropriate angle: 30°, 45°, 60°, 75°, 90° or 135°.
• Before starting, check that the magnet is firmly seated on both metal surfaces.
• Align the elements and check for correct position before spot welding.
• After spot welding, recheck alignment and then perform the final weld.
• After finishing work, remove the magnet by carefully separating it from the metal.

Useful tips for work:
• Clean metal surfaces before use, as dirt, rust or metal filings will reduce the magnet's adhesion.
• For heavier pieces, use additional support and do not rely solely on the magnet.
• Check all angles before welding, as the material may move during heating.
• Use the magnet primarily as a positioning aid, not as a permanent attachment.
• After use, remove metal filings from the magnet and store it in a dry place.
• The angle is also suitable for soldering, assembling metal elements and other metal work.

Warnings:
• The magnetic angle is not intended for lifting loads or people.
• Do not exceed the stated load capacity of 37.5 kg.
• When welding, use an appropriate welding mask, gloves and protective clothing.
• Protect the magnet from direct contact with the welding arc and excessive heating.
• Before moving or removing the angle, make sure the workpiece is securely supported.
• Be careful of hot metal surfaces and the possibility of burns.

Same summary

The hexagonal magnetic welding angle with a load capacity of 37.5 kg is suitable for use in both workshops and home garages for tasks where precise and stable holding of metal elements at an angle is important. It works well when assembling structures, where temporary fastening of metal pipes, plates or profiles at several different angles is often required. For more demanding users or with higher loads, it is recommended to check whether the load capacity is sufficient for your specific needs, as exceeding the maximum weight may lead to less stable support.

Recommendation source: Enaa guides and team experiences.

User view

The magnetic angle is used by a wide range of users, especially those who perform minor welding work or assemble metal structures themselves. Due to its ease of use, it is a practical tool for hobbyists and home craftsmen who want to assemble structures at the right angle faster and safer, as well as for experienced welders who appreciate stable assistance in precise work.

When choosing accessories for welding tasks, users often trust the Geko brand, as it is considered reliable in the segment of quality tools and accessories.

Why buy at Enaa

At Enaa, you can expect a professionally supported range of tool accessories with precisely described intended uses, making it easier to choose the right product. In addition, we have clearly categorized products, so you can quickly find an accessory that will suit your tool and the way you work.

Answers to frequently asked questions

What materials is this magnetic welding angle suitable for?

The angle is intended for use primarily with metallic materials, where the magnetic support provides stability and alignment during welding. It is not suitable for non-magnetic materials such as aluminum or copper.

What angles can I set with this set square?

A hexagonal magnetic square usually allows you to clamp materials at various standard angles, such as 45°, 90° and 135°, which covers most basic welding and assembly needs.

Does the magnet lose strength due to the heat of welding?

Direct heating from a welding arc or exposure to very high temperatures can weaken the magnet over time. It is recommended to avoid prolonged exposure to high temperatures to maintain the strength of the magnet.

How do I clean the magnetic angle after use?

After finishing the work, we recommend cleaning with a soft cloth to remove metal shavings or dust. The use of liquid agents is not necessary, regular mechanical cleaning is sufficient.

Is the angle bracket also suitable for larger metal profiles?

The angle has a load capacity of up to 37.5 kg, making it suitable for most standard small and medium-sized metal profiles. For heavier or very large elements, check that the total weight does not exceed the stated load capacity.

Description updated: April 2026
