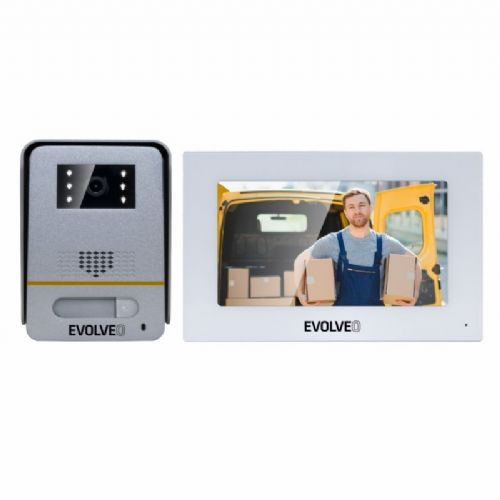

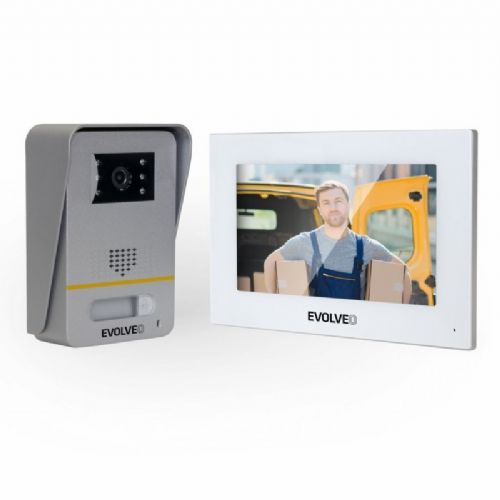

The EVOLVEO AP1 video doorphone is a modern video doorphone with the SMART LIFE application for remote control, Full HD video, a pair of relays for controlling the opening of the front door and the entrance door. Thanks to the simple wiring with only two wires, anyone can install it. In addition, the monitor is equipped with an internal 32GB memory for recording what is happening in front of the camera, so you will not miss any postman with a package.

Just two wires are enough.

Installation has never been easier, only two wires are needed to connect the door station and the monitor. You can also connect the video intercom to the original doorbell using a two-wire cable. In addition, there is no need to pay attention to the polarity of the wires, just use the ready-made lever terminals and connect everything quickly. The power supply is connected to the side of the monitor. Both the door station and the monitor are designed to be mounted on a standard KU68 installation box.

High-quality, durable design

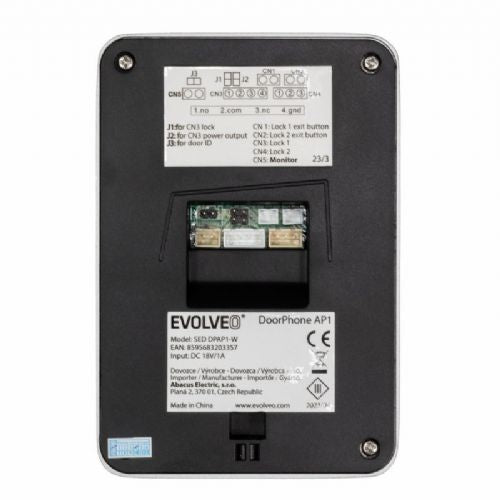

The door - outdoor unit with button and camera is made of durable aluminum alloy. If the device is installed correctly with the included gasket, it achieves IP65 weather protection. The camera is equipped with night vision lighting, so you can see who has visited you at night.

Easy to use

The weatherproof overhead panel is equipped with a button and a camera that guests can use to call you. When a guest presses the call button on the outdoor station, the monitor rings, and at the same time the visitor's image appears on the screen, and you decide whether to open the door or not. This incredible feature provides you with a complete access control system.

The package includes everything needed for easy installation: an indoor monitor, an outdoor unit with a camera, a set of screws and bolts, and cable clamps with lever.

Main functions of the input panel:

Camera: CMOS sensor 1/3, 1.22 mm

Image resolution: 1080P

Microphone: Yes - two-way voice communication

Ringtone selection: yes, 6 ringtones

Internet connection: WiFi 2.4 Ghz monitor

Monitor color: white

Monitor size: 7"

Door panel color: aluminum

Intercom function: yes (communication between monitors)

Remote control: yes Smart Life (Tuya platform)

Non-polar, two-wire system for simplified installation

1-button model

Equipped with clips for adding a door opener button

Night IR illuminator - night black and white photography

Surface mounting with gasket

Weatherproof - IP65

Large illuminated name plate

2x 5A relays for doors and door opening

Monitor power supply: 18V DC

Adapter cable length: 120 cm

Menu in languages: CZ, SK, EN, HU and RO

Monitor dimensions: 130x200x40, HxWxH(mm)

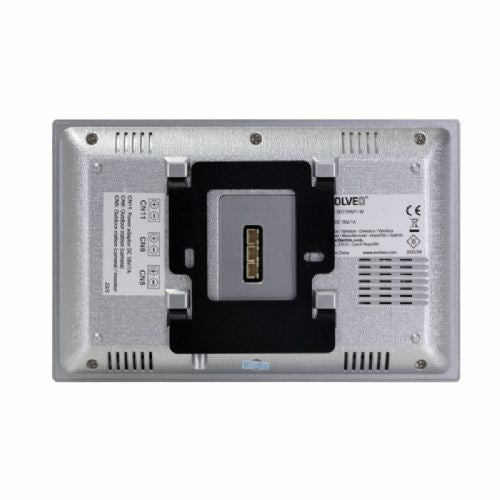

Monitor mounting: using a spacing bracket on the KU68 wiring box

Door unit dimensions : 100x138x40 HxWxD (mm)

Panel mounting: using a bracket with 4 screws with a spacing of 45x100 mm

The package includes:

1 x 7" monitor

1 x entrance panel, door unit

1 x power adapter

1x set of screws and dowels

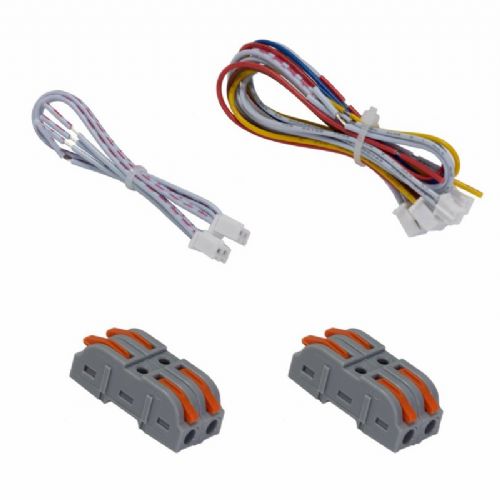

1x set of cables for connecting units

1x user manual

Same summary

The Evolveo Videophone DoorPhone AP1 is suitable for users who want reliable and transparent control over the entrance to a house, apartment or small business. The wired connection allows the system to be constantly ready without worrying about charging, and local storage brings additional privacy, as the recordings remain in your hands. The product is less suitable for those who are looking for a wireless installation or want a simple solution without the possibility of video surveillance.

Support for audio-video visitor verification and basic local management are user-friendly features, but for greater flexibility in different rooms or advanced integration into a smart home, we recommend checking for additional compatibility.

Recommendation source: general guidelines for product selection.

User view

This video doorbell is typically chosen by individuals and families who want to monitor visitors at the entrance without any worries and for whom home security is important. It is also useful for those who live in apartment buildings or have a weekend away, as they can check on what is happening and communicate with visitors, regardless of where they are.

The Evolveo brand is appreciated by users for its balance between ease of use and adaptability to the various needs of the modern home.

Why buy at Enaa

You can rest assured when shopping at Enaa, as we offer comprehensive product descriptions, professional team support, and always fresh offers tailored to the Slovenian smart home market.

Answers to frequently asked questions

Is the Evolveo Videophone DoorPhone AP1 suitable for multi-apartment buildings?

This model can be convenient in smaller multi-apartment buildings where there is no need for more complex internal connections or advanced central system functions, so it is recommended to check the requirements of your facility in advance.

How does local recording storage work?

All visitor recordings are stored directly on the videophone itself or the associated local storage unit, which reduces the risk of unauthorized access to your data.

Is a constant internet connection required for basic operation?

For basic communication functions and local recording, the videophone works without a permanent internet connection, and the internet is only needed if you want remote access via a smart device.

Can I connect the Videophone to other smart devices in my home?

This model supports basic local management, but for advanced integration into larger ecosystems or connection to a smart lock, always check compatibility with other devices.

What is the advantage of a wired solution compared to wireless models?

The wired connection ensures continuous operation without the need to change or charge batteries, which is especially important for rooms with high frequency of use.
