Features
Rack capacity: 9U
Type: Wall shelf
Maximum load capacity: 60 kg
Product color: gray
Material: steel
Frame type: Closed
Rear door construction: steel
Front door construction: glass
Side wall construction: steel
Side cover type: Blind
Rear door type: Blind
Type of front door: glass door
Function: Lock

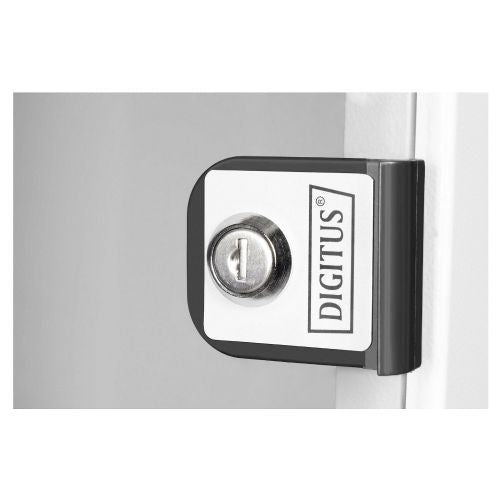

Feature: Lock on the front door
Feature: Storage rails
Feature: Adjustable mounting rails
Feature: Adjustable depth
Cooling: Passive
Feature: Improved cable management
Door opening angle: 200°
International protection class (IP code): IP20
Weight and dimensions
Size (imperial): 25.4 cm (10 inches)
Width: 316 mm
Depth: 298 mm
Height: 457mm
Weight: 5.93 kg
Packaging information
Feature: Quick Installation Guide
Packaging width: 349 mm
Packaging depth: 465 mm
Packaging height: 153 mm
Package weight: 6.38 kg

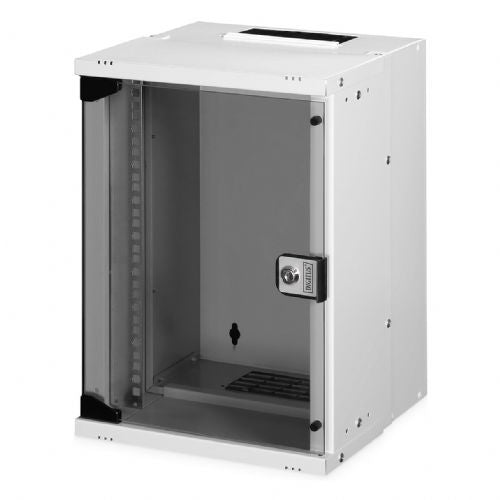

The DIGITUS® SOHO PRO wall cabinet series is characterized by efficient delivery in optimized flat packaging and particularly user-friendly installation.

- Compact housing for installation in tight spaces
- Simplified logistics: Delivery is unassembled in an optimized flat package
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws

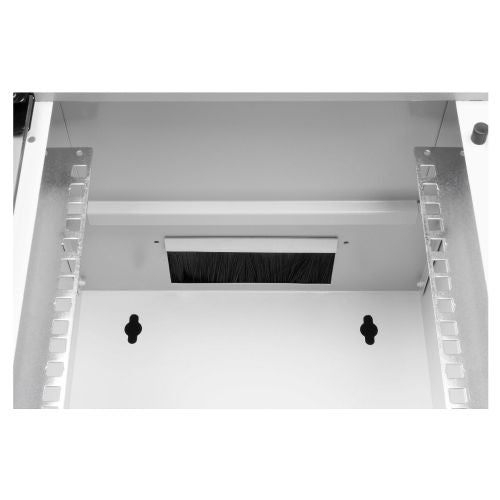

- Flexible cable routing options through protected openings in the roof and floor

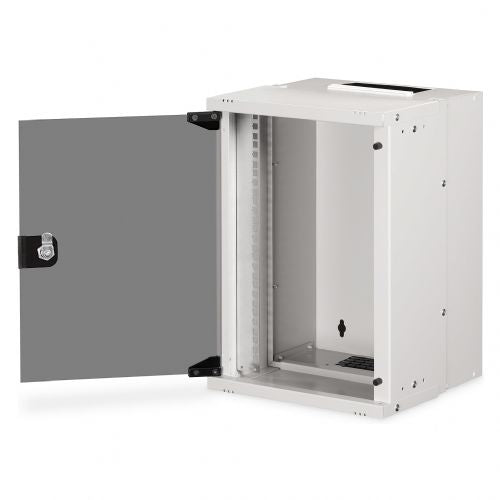

- Lockable safety glass door with 200° opening angle

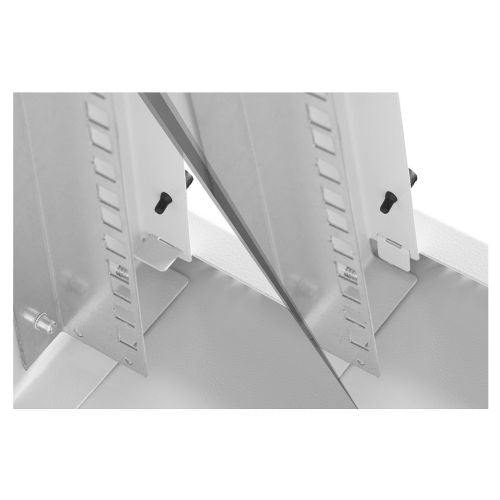

- Profile rails with adjustable depth 254 mm (10")
- Load capacity for component assembly: 30 kg

Whether for private use, office or sub-distribution systems with limited space: With the compact 254 mm (10") solutions of the SOHO PRO series, you can install your network wherever you want. The wall cabinets, which are available in three height units (6U, 9U, 12U), are equipped with a full glass door and cable entry in the roof and floor. Two galvanized 254 mm (10") profile rails are installed inside, marked with readable height units. These rails are adjustable in depth. Each cabinet is a robust steel construction made of sheet steel up to 1.5 mm thick. The paint is electrostatically powder-coated in the standard colors gray (RAL 7035) and black (RAL 9005). The doors can be reversed. The network cabinets are delivered unassembled in an optimized flat package. Assembly takes just a few steps and is child's play, thanks to the included step-by-step instructions.

The text is machine translated.

Same summary

The Digitus SOHO PRO 9U wall cabinet with a width of 460 mm, a depth of 315 mm and a height of 300 mm is suitable primarily for arranging smaller offices, home networks and SOHO setups where space is limited. Due to its compact dimensions and wall mounting, it enables safe and clear installation of basic network equipment, such as smaller switches, patch panels or NVR units. The cabinet offers basic protection against unauthorized access, but due to its low load capacity and limited internal space, it is less suitable for larger enterprise systems or heavier server devices. It is recommended for users looking for an economical solution for organizing basic network infrastructure in limited spaces, where future system expansion is not a key priority.

Recommendation source: Enaa guides and team experiences.

User view

A cabinet like the Digitus SOHO PRO 9U is most often used by smaller businesses and individuals who want to provide a tidy and secure installation of basic network equipment in a home or office environment. It is often chosen by users who care about protecting their network infrastructure from dust and unauthorized access, but do not need a large amount of upgradeability or load capacity. In such environments, clear cable organization and easy service are key.

Most users appreciate the Digitus product range, as it is recognized for its reliability and wide range of network infrastructure solutions, which facilitates later upgrades within the same ecosystem.

Why buy at Enaa

When you buy a communications cabinet at Enaa, you are guaranteed access to detailed technical descriptions and expert support to help you choose the right solution for your needs. You can also compare different models in one store and find practical accessories to make organizing your IT equipment easier.

Answers to frequently asked questions

Is this cabinet suitable for installing 10" devices from other manufacturers?

Yes, the cabinet accommodates 10" devices as standard, but before purchasing, check the dimensions of the desired components in terms of internal usable depth and height.

What is the maximum load for wall mounting this cabinet?

Wall-mounted cabinets with compact dimensions like this one are optimal for lighter network equipment; for heavier servers or a larger number of units, we recommend floor-standing cabinets with a higher load capacity.

Is it possible to add additional ventilation or a fan to the cabinet?

The cabinet allows for basic ventilation and, if necessary, the installation of additional fans if required due to denser equipment or higher thermal load.

How is cable access provided with this cabinet?

Specially designed cable routing holes are available on the back or top, allowing for neat installation and easier servicing of network equipment.

Description updated: April 2026
