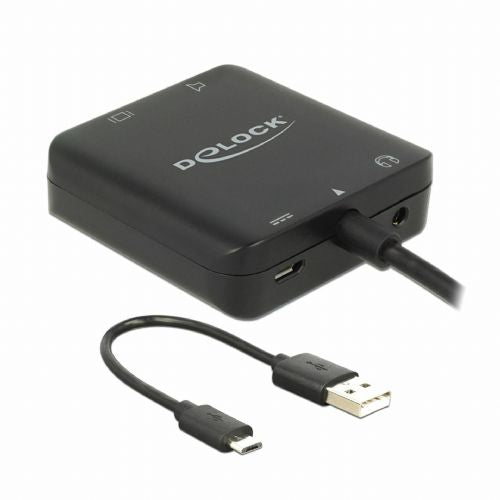

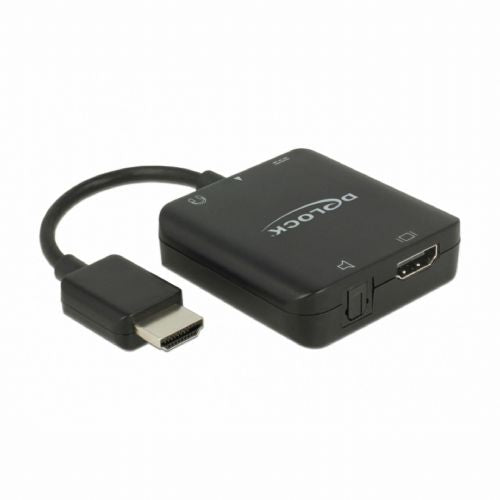

The Delock 62784 is a 4K 30Hz audio extractor that separates the audio signal from the HDMI signal, allowing you to reproduce the sound via an external speaker, sound system, amplifier or headphones. The audio signal can be sent digitally (S/PDIF) or analog (stereo).

The Delock 62784 is an audio extractor that separates the audio signal from the HDMI signal, allowing you to reproduce the sound via an external speaker, sound system, amplifier or headphones. The audio signal can be sent digitally (S/PDIF) or analog (stereo).

Technical features:

Connections:

Entrance:

1 x HDMI-A 19-pin male

1 x USB type Micro-B female (5 V power supply)

Output:

1 x HDMI-A 19-pin female

1 x 3.5 mm 3-pole stereo jack female (audio)

1 x TOSLINK female S/PDIF

High Speed ​​HDMI, 3D and HDCP1.4

Automatic switching to stereo (2.0) when using a stereo jack and automatic muting

digital output

Resolution up to 3840 x 2160 at 30 Hz (8 bit), 1920 x 1080 at 60 Hz (12 bit)

Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.

Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio

Supported sampling rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on

system and connected devices)

HDMI audio routed to output (pass-through)

Power consumption: max. 2 W

1x Delock converter HDMI-HDMI 4K /3.5mm/ TOSLINK/SPDIF Audio Extractor 62784, 1x Instructions

Warranty: 12 months

Weight: 0.110kg

Manufacturer:
Delock
TRAGANT Handels- und Beteiligungs GmbH
BEESKOWDAMM 13/15, 14167 BERLIN, Germany
info@delock.de

Data of the responsible person in the EU:
Delock
TRAGANT Handels- und Beteiligungs GmbH
BEESKOWDAMM 13/15, 14167 BERLIN, Germany
info@delock.de

Same summary

The Delock HDMI-HDMI 4K /3.5mm/ TOSLINK/SPDIF Audio Extractor 62784 converter is intended for users who are looking for a stable solution for separate capture of audio signals from an HDMI source - for example for connecting external sound systems or AV equipment. Its operation is most sensible in environments where a standard HDMI connection is not sufficient for the needs of separate transmission of multi-channel audio. It is suitable for business conference rooms, home cinemas as well as more demanding gaming setups. It is necessary to ensure that the converter is compatible with the connected devices and that they support the intended audio formats and resolutions; otherwise, limited use or the need for additional adjustment may occur.

Recommendation source: Enaa guides and team experiences.

User view

Typical users of this converter are individuals or teams who want to separately route audio from a computer, laptop, game console or other HDMI source to an external speaker, AV receiver or headphones. In practice, this is especially useful in smaller meeting rooms, home entertainment electronics or when connecting sound systems where the HDMI input itself does not allow for easy audio splitting. The solution is equally suitable for consumers who want to improve the audio experience when watching movies, or for gamers who need low noise and a separate audio output.

Users appreciate the quality and reliability of Delock products, as they enable broad compatibility and a long service life in various environments.

Why buy at Enaa

At Enaa, you can expect proven product quality and accurate and professional descriptions to help you make informed decisions. We also make it easy to find similar AV converters with clear technical data, making it easier to compare and choose the right one for your needs.

Answers to frequently asked questions

Is this converter compatible with TVs, projectors and AV amplifiers?

Most TVs, projectors and amplifiers that offer HDMI and TOSLINK/SPDIF or 3.5mm connections are compatible with this converter, as long as they support the appropriate signal standard. It is recommended to check the specifications of both devices before use.

Can I extract audio from an HDMI signal even if the video image is standard definition (e.g. Full HD)?

Yes, the converter allows audio signal separation even at lower resolutions such as Full HD, but the key is the devices' support for the HDMI standard used by the converter.

What to do if there is no sound on an external device when connected?

If there is no sound, it is recommended to first check the audio output settings on the source (e.g. computer or console) and make sure that the audio format, such as PCM or Dolby Digital, is supported and activated.

Does the converter affect the picture or sound quality?

The converter is designed to maintain the original image and sound quality, provided that all connected devices are compatible and appropriate cables are used. Minor losses may occur with longer cables or non-standard layouts.

What situations is this converter not suitable for?

The converter is not suitable for use with older devices that do not support HDMI connections or when an analog conversion process is required. It is also not adapted to advanced AV systems with non-standard audio protocols.
