Automatic metal punch and punch 130mm – Perfect precision with every drilling
Do you often find that the drill bit slips out of place when you start drilling and damages the surface of the workpiece? The 130mm Automatic Metal Center Punch (SKU: M22363) is a top-notch tool that will eliminate this problem once and for all. This professional tool is designed for quick, accurate and easy marking of center points before drilling in various materials such as metal, wood and plastic.
Thanks to the innovative automatic mechanism, you don't need a hammer to operate. With a single push of the hand, you will create a perfect recess that will keep the drill exactly where it needs to be. This not only improves the precision of your work, but also significantly extends the life of your drill bits by preventing them from twisting and melting due to slippage.
Why choose a 130mm automatic punch?
Every handyman knows that good preparation is the key to a successful project. This automatic punch combines ergonomic design, premium materials and outstanding functionality. The knurled aluminum housing provides a solid and non-slip grip, allowing safe work even with work gloves or in wet conditions. With a length of 130 mm, the punch is extremely handy, compact and suitable for any tool bag.
One of the biggest advantages of this model is the ability to adjust the impact force. By simply rotating the rear part of the punch, you can adjust the impact force according to the hardness of the material you are working on – from soft wood and plastic to hard sheet metal and steel.
Key features and technical specifications

Purpose of use: Precise marking of points before starting drilling, which minimizes the effect of so-called "floating" or moving the drill bit across the surface.
Housing material: High-quality knurled aluminum housing for maximum grip and wear resistance.
Automatic mechanism: Works without the use of a hammer - it is triggered by simply pressing the hand on the striker.
Adjustable impact force: Possibility of regulating the impact force of the impact needle depending on the type and hardness of the marked material.
Total length: Approximately 130 mm – ideal size for precise guidance and easy storage.
Needle diameter: 4 mm, which ensures optimal deep and visible marking.
Versatility: Suitable for working with metal, wood, plastic and other materials.
Aesthetic design: Attractive and highly visible combination of silver and red.

Benefits of using an automatic point meter in your workshop
Using this tool brings many advantages for both professional craftsmen and home craftsmen:

Save time and effort: Forget about searching for a hammer and holding a classic dot. With the automatic system, mark the desired point in just one second with one hand.
Complete safety: Since you don't need a hammer, there is no risk of hitting your fingers or damaging the delicate surface of the material around the drilling point.
Wide applicability: The tool is widely used in various industries such as carpentry, metalworking, upholstery, car painting and even tailoring.
Long service life: Made from durable materials that ensure reliable operation even with intensive daily use.

Instructions for proper use
Using the automatic dot plotter is extremely simple and intuitive, so even beginners will easily master it:

Mark the place where you want to drill the hole (e.g. with a pencil or marker).
Place the sharp tip (needle) of the scriber exactly on the marked spot.
Hold the stylus perpendicular to the surface of the material.

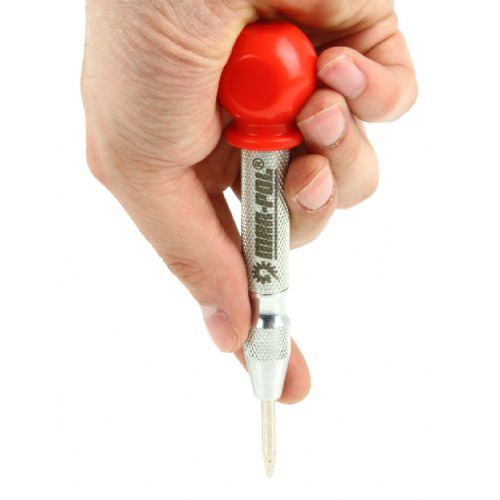

Press down firmly and evenly on the back of the dowel with the palm of your hand until the internal spring mechanism is activated, delivering a powerful blow and creating a perfect indentation.

For a visual demonstration of the operation and effectiveness of the automatic point marker, watch the video below:

Frequently Asked Questions (FAQ)
1. Do I really not need a hammer to use this dowel?

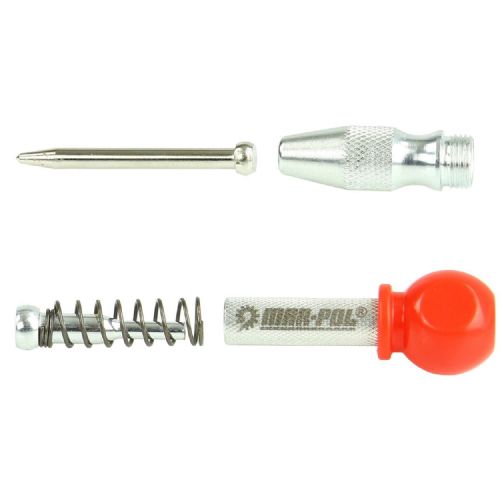

That's right. The point punch works on the principle of a built-in spring mechanism. When you press the tool against the workpiece, the spring compresses and, when it reaches a certain point, releases the striking pin with a strong force. A hammer is not even needed, allowing you to work with one hand.
2. What materials can I use this automatic dowel on?
The tool is extremely versatile and is suitable for marking various types of materials. It can be successfully used on metals (steel, aluminum, copper), wood of all hardnesses, plastic, plexiglass and other solid materials.
3. How do I adjust the impact force on the point?
Easily adjust the impact force by turning the red cap on top of the punch. Turning clockwise increases the spring tension for a stronger impact (suitable for harder metals), while turning counterclockwise decreases the force (suitable for softer materials such as wood or plastic).


Responsible persons:
MAR-POL - MAR-POL SCIMPORT EXPORT M.ŚCIANA, K.ŚCIANA, 26-020 Chmielnik, Suchowola 6a, Poland, obsluga@mar-pol.sklep.pl, +48607865357
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
1. Place the punch with the sharp end on the material you want to mark. Press firmly with your hand, the punch needle will permanently mark the point on the material.
2.The punch does not require spring tensioning - this is done automatically.
3. Immediately after pressing the needle onto the material and striking, we can repeat the operation and mark the next point.

Useful tips for work:
• Before use, check that the punch is suitable for your material and punch.
• Wear appropriate protective equipment such as goggles and gloves during use.
• Clean the ejector regularly to prevent dust and dirt from accumulating.
• If the ejector is not working properly, stop using it and have it inspected or replaced.

Warnings:
⚠️ The tip is sharp - risk of injury.
⚠️ Wear safety glasses when working, as metal particles may fly away.
⚠️ Only use the tool on stably installed material.
⚠️ Do not point the tip at yourself or other people.
⚠️ Do not use a damaged stylus.
⚠️ Keep out of reach of children.

Same summary

The 130mm automatic metal punch is a product that excels at precisely marking points on metal surfaces. It is suitable for hobbyists, DIYers or anyone who regularly does small metalworking jobs and wants better control and consistency when starting a drill. Its automatic impact function means there is no need for a hammer, which increases convenience when working and reduces the chance of slipping. In very hard or thicker steel materials, its range may be limited compared to specialist, heavier tools - however, it does its job perfectly in everyday, lighter use.

Recommendation source: Enaa guides and team experiences.

User view

The product is most often used by those who regularly tackle occasional or more demanding DIY projects where it is necessary to mark the exact point before starting to drill into a metal surface. Due to the easy-to-use automatic impact mechanism, it is also suitable for less experienced users or younger people who want greater precision without the use of additional tools.

Many users appreciate the Mar-Pol brand for the ratio between practicality and durability of their tools, which allows them to be used reliably in the home or professional workshop.

Why buy at Enaa

On Enaa you can browse a diverse range of tools and quickly compare similar products from different categories and brands. Shopping is easy and transparent, and detailed information on the site makes it easier to make the final decision.

Answers to frequently asked questions

For which materials is an automatic scoring machine best suited?

The marker is primarily intended for marking points on metal surfaces, but it can also be used on softer materials such as aluminum or copper.

Are additional equipment required for use?

Not required. The automatic mechanism allows scoring without a hammer or other tools – just a light pressure on the handle is enough.

How accurately can points be marked with a 130 mm long punch?

The 130 mm length allows for good control and stability when marking. For extremely fine or demanding tasks, extra care is recommended when setting the force.

What to do if the dot does not make a deep enough mark?

If the material is very hard or the surface is uneven, you can repeat the process or increase the pressure slightly; in rare cases, for particularly hard metal, consider a more powerful or classic impact tool.

Is the automatic timekeeper also suitable for professional use?

It is also perfectly suitable for professional users for basic marking in small batches or during assembly work. However, for demanding batch work with robust materials, it may make sense to choose a specialized industrial spotter.

Description updated: April 2026
