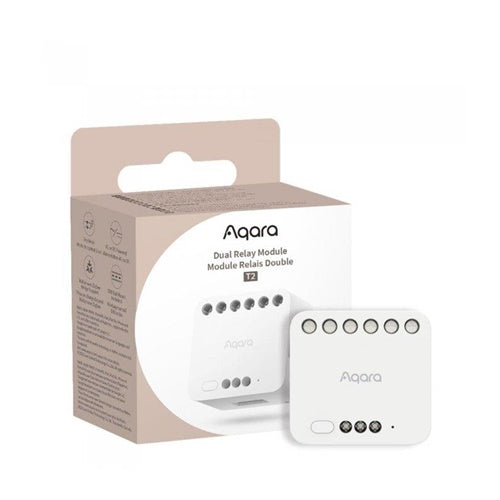

Aqara T2 Dual Relay Module

Aqara Dual Relay Module T2 is a device that uses Zigbee technology to regulate power and control on and off functions. It is capable of controlling a variety of devices, including motors, garage doors, lights, switches, and sockets in two modes: dry and wet contact. This module can raise the intelligence and potential of traditional equipment. The device connected to the Apple Home platform can be smoothly controlled through the Apple Home app, and is widely compatible with various third-party platforms. With the help of the hub, functions such as app-based remote control, time control, and power statistics can be implemented.
Highlights:

A versatile solution for the home: T2 is versatile and can be used in a variety of ways. It can be installed in ceiling lights for smart control or in conventional wall switches and sockets for remote access. It is also suitable for automatic coffee machines, air fresheners, electric heaters, roller blinds and garage roller doors in homes.
Apple Home and Matter over Bridge Support*: The T2 is compatible with Apple Home, Matter, Google Home, and Amazon Alexa. It turns traditional devices into smart devices and seamlessly integrates with multiple third-party systems. This makes it easy to automate setup and connect with other compatible products, providing a versatile and user-friendly experience.
Motor interlock and control: Users can easily and safely connect the T2 dual relay module to bidirectional motors. Now the T2 can be used to control tubular motors, as a roller shutter switch, and even as a system core.

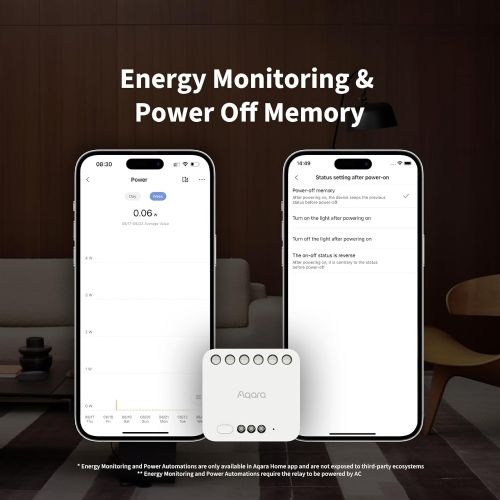

Energy monitoring and power memory: The T2 dual relay module includes an on/off state memory function that remembers the last state after a power failure. In addition, it offers power measurement and statistical functions.
Improved Safety and Security: Safety is paramount when working with DIY electrical equipment. Our priority is user safety, given the complexity of installation and use. We allow you to set max and min values for voltage, current and power. In cases of abnormal wake-up conditions, the power supply is automatically turned off to ensure safety.**
Wireless Switch Mode: Conversion to wireless switch mode is also supported. Thanks to this feature, it will be possible to turn an existing wall switch into a scene controller: turn on or off a security system, control curtains or lights using just your old wired switch.***
Easy to use and install: The relay's DIN rail-mounted design makes it easy to install in electrical cabinets and other tight spaces. Its compact size makes it even more suitable for other wall boxes, including 86mm and those that meet the American standard.****

Examples of use cases:

1. Garage door controller

Thanks to the dry contact mode, you can use Relay T2 for smart existing garage doors. Just connect a garage door opener and you can use your garage door in automation and expose it to third-party systems. And the relay will act as a repeater for your Aqara door and window sensor, so you don't have to worry about weak signal.

2. Save energy by using T2 to control boilers

If your boiler can be controlled with dry contacts, you will be able to make it smart with the T2 relay. As a result, you will be able to control it remotely and save energy by connecting it to radiator thermostats using Aqara Home or third-party automation.

3. Install it behind wall switches and sockets

Simply install the T2 behind an existing wall switch or socket and you can turn it into a smart one. As a result, existing sockets and switches will be able to participate in automation and gain the function of energy consumption statistics.

Technical data:

Product Name: Aqara Dual Relay Module T2
Model: DCM-K01
Wireless protocols: Zigbee
Dimensions: 45.5 × 48 × 24 mm (1.79 × 1.89 × 0.94 in.)
Operating temperature: -10°C ~ 40°C (14°F ~ 104°F)
Operating humidity: 0 ~ 95% RH, non-condensing
Zigbee operating frequency: 2405-2475MHz
Zigbee maximum output power: ≤13dBm

Estimated parameters
AC:
100-250 V, 50/60 Hz/max. 10 A, max. 2500 W (incandescent bulb);
Maximum 1 A, maximum 250 W (LED, CFL fluorescent lamp);
Max 1 A, max 1/4 HP (motor) M.1

DC:
24-30 V: maximum 10 A, maximum 300 W (resistive load);
30-60 V: 1 A maximum, 60 W maximum (resistive load);

What's in the box?

Dual relay modules T2 × 1,
User manual × 1,
DIN rail accessory ×1,
Jumper wire × 1
