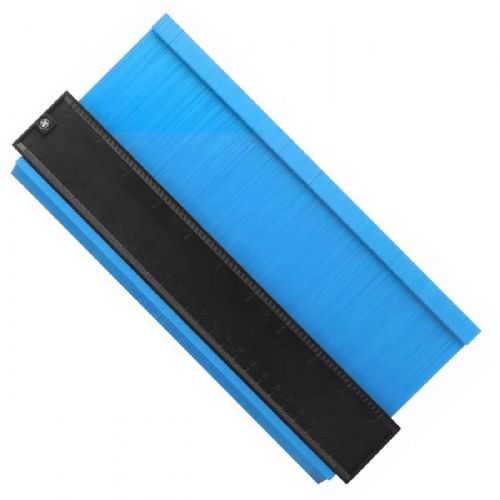

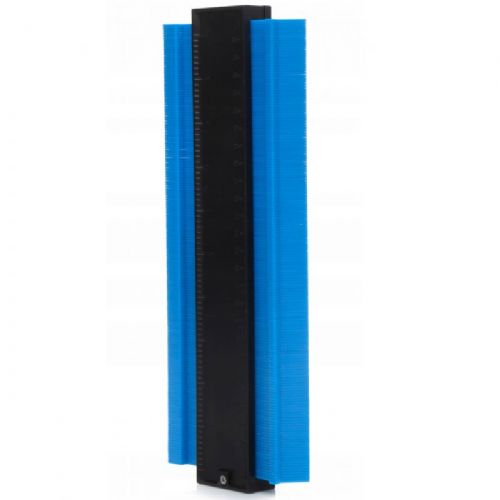

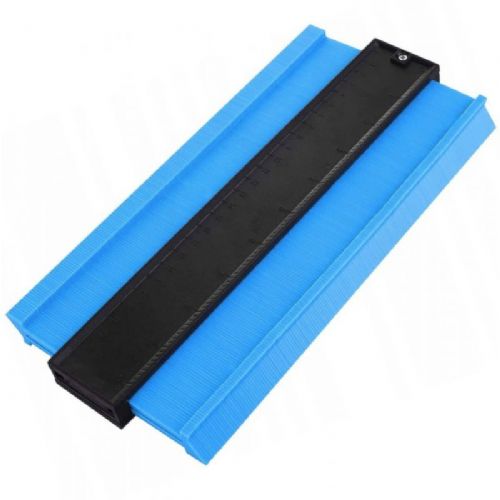

520mm Shape Mapping Template – Professional Profile Template Meter for Precision Work
Looking for a simple, fast and extremely accurate way to transfer complex shapes, curves and irregular profiles to the workpiece? The 520mm Shape Mapping Template (SKU: KD10389) is a top professional tool that should not be missing in any workshop. Whether you are a professional floor layer, ceramicist, carpenter or passionate DIYer, this profile meter allows you to copy any shape in seconds and transfer it without errors to the material you want to process.
Thanks to its exceptional working length of 520 mm, this template is ideal for larger and more demanding projects where conventional, shorter profiling meters simply are not enough. Forget about time-consuming and complicated measuring, guessing, corrections and ruined material. With this template, you will make every cut confidently, quickly and with millimetre-precise accuracy on the first try.
Why choose a 520 mm long shape mapping template?
Precise cutting around pipes, door frames, corners, columns and other irregular shapes can be an extremely demanding and time-consuming task without the right tools. The universal shape mapping template works on a simple but extremely effective principle: thin slats adapt perfectly to the surface of the object you are measuring when pressed. When you place the template against the object, the slats precisely copy its shape. You can then simply transfer and trace this shape onto tile, laminate, wood, plasterboard or metal and cut it out precisely.
Its clever flat design makes this tool extremely convenient for use in hard-to-reach places where using other measuring tools would be practically impossible. An additional big advantage is the built-in handy magnets that allow stable work on metal surfaces without moving, slipping or the need for additional holding.
Key advantages of using the KD10389 profile template

Extraordinary time and material savings: Fast and accurate shape copying means an end to cutting errors, significantly less waste material and faster completed projects.
Extra-long 520mm length: Allows you to capture wider profiles, larger surfaces and longer lines in a single step, greatly increasing your productivity in the field or in the workshop.
Versatile use in all industries: The perfect tool for laying laminate, parquet, vinyl, ceramic tiles, woodworking, model making, bodywork, drywall and other renovation work.
Strong magnetic fixation: Integrated magnets ensure that the template stands firmly on metal surfaces, freeing your hands for easier, safer and more accurate drawing and marking.
Easy and quick reading: Clearly marked measuring scales allow for immediate dimension control directly during work, without the need for additional measuring tapes.

Product technical specifications
The 520mm shape mapping template is designed with long-lasting durability, stability and maximum accuracy in everyday use in mind. Below are the exact specifications to ensure a superior user experience:

Product code (SKU): KD10389
Category: Angles and clamps
Working length: 520 mm
Tool width: 100 mm
Tool thickness: 20 mm
Thickness of each panel (lamella): 1.5 mm
Scale reading: every 10 mm
Reading grooves: 1 mm each
Additional features: Flat design for hard-to-reach places, integrated magnets for stable work on metal

How to use the shape mapping template correctly?
Using this professional tool is extremely simple, intuitive and does not require any prior experience or special knowledge:

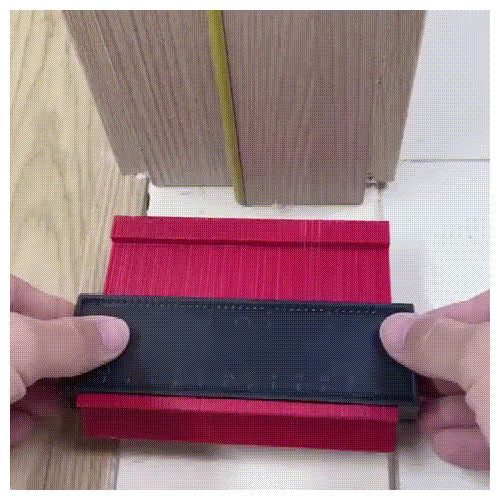

Press: Gently press the template against the profile, pipe, frame, or any object whose shape you want to copy.
Adjust: The thin slats will automatically move and adjust precisely and tightly to the outer lines of the object.
Transfer: Carefully remove the template and place it on the material you are going to cut (e.g. ceramic tile, wooden board or laminate).
Trace: Simply trace the copied shape directly along the edge of the precisely aligned slats with a pencil or marker.
Cut: Make a clean and precise cut along the marked line and enjoy a perfect fit of the material.

Frequently Asked Questions (FAQ)
What materials is this shape mapping template suitable for?
The KD10389 template is completely universal. It can be used to transfer shapes onto any material, including wood, laminate, vinyl, ceramic tiles, plasterboard, metal, plastic and leather. The extremely thin individual lamellas (only 1.5 mm) allow for incredibly precise and detailed transfer of curves and angles.
What is the advantage of built-in magnets on the template?
The built-in magnets are an extremely useful and practical addition when working with metal structures such as metal frames, pipes, drywall profiles or vehicle bodies. The magnets hold the template firmly in place, preventing unwanted movement of the template while drawing and allowing you to do the work with one hand, ensuring maximum accuracy.
Is the template suitable for demanding professional use?
Yes, absolutely. With its extra-long length of 520 mm, robust construction that can withstand everyday use, and extremely precise reading (with reading grooves every 1 mm), this template is the first choice for both professional craftsmen on construction sites and demanding DIYers who do not compromise on their projects and want professional results.


Responsible persons:
KRAFT & PARTS - DAWIKA KRAFT SA, Główna 1B, 83-200 Koteże, Poland, +(48) 58 56 090 24 kraft@dawika.pl
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Place the template against the object or surface you want to map.
• Adjust the teeth to the shape and gently push them against the edge.
• Transfer the shape to the material and mark it with a pencil.
• After marking, align and save the template.

Useful tips for work:
• Suitable for wood, laminate, tiles and other materials.
• For complex shapes, adjust the teeth slowly and without force.
• Always check the accuracy of the transferred shape before cutting.

Warnings:
Do not press too hard to avoid damaging the teeth.
Use the template only for measuring and transferring shapes.
Use appropriate protective equipment when cutting the transferred shape.

Same summary

The 520 mm shape tracing template is suitable for users who frequently mark or transfer shapes on larger elements such as boards, fences or construction materials. Due to the longer measuring scale, it enables reliable work especially in more demanding construction and carpentry tasks, but is less suitable for very small detail work in tight spaces. The robust design helps maintain accuracy even in more demanding applications, but the size may slightly reduce convenience on smaller projects. It is especially useful where complex lines or shapes need to be quickly transferred to work in field conditions.

Recommendation source: Enaa guides and team experiences.

User view

The product is most often used by home craftsmen, carpenters and those who undertake renovations or the installation of larger objects in the garden and around the house. In practice, the template is extremely useful for quickly and accurately transferring irregular lines, for example when cutting panels, installing fences or other larger structures, where conventional measuring tapes are too short. Users especially appreciate the fact that they can use one tool to facilitate the copying of original shapes onto various materials, even in hard-to-reach places.

Many users trust Kraft & Dele solutions, as they are known for their robustness and reliability in operation.

Why buy at Enaa

At Enaa, you can choose from proven tools from selected brands in the angle bracket category, and we often support the products with professional descriptions and useful practical advice to make the choice easier and more well-considered.

Answers to frequently asked questions

What materials is this template suitable for?

The template is used to transfer shapes to materials such as wood, metal, sheet metal, plastic or ceramics, the only requirement is a suitably flat surface and the ability to trace the shape with a pencil or pen.

Is the 520 mm length suitable for smaller projects?

The 520 mm long template is most useful for larger elements, but may be a bit cumbersome for very small projects, so shorter templates are usually sufficient in these cases.

What does robust execution mean in mapping templates?

The robust design ensures that the template does not bend or deform during use, which affects accuracy and a longer lifespan, especially with more frequent field work.

Is the product also suitable for professional use?

Due to its length and sturdy construction, the template also meets the requirements of professional users, such as carpenters or installers, who need to transfer larger shapes quickly and repeatably.

How do I properly clean the template after use?

After use, we recommend wiping the template with a soft dry or slightly damp cloth to remove any material residue, as this will prevent accuracy from being compromised by accumulated dirt.
