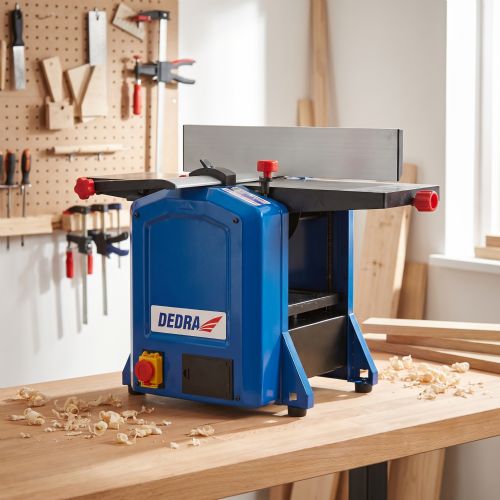

204mm Table Planer for Woodworking 1400W DED7813 – Professional Planer and Thicknesser for Your Workshop
Looking for a reliable, powerful and precise woodworking tool? The 204mm 1400W Woodworking Bench Planer (SKU: DED7813) is a premium planer (planer and thicknesser) that will take your carpentry and home crafting to a professional level. This robust bench planer is designed for precise surface planing, smoothing and thicknessing of wooden elements.
With a powerful 1400W motor and high rotation speed, this planer is the ideal choice for both demanding DIYers and smaller craft workshops. Whether you are preparing furniture boards, renovating old wood or making structural elements, this machine will provide perfectly smooth results without any effort.

Why choose the DED7813 table planer? Key benefits
Exceptional power and high operating efficiency
At the heart of the machine is a powerful 1400W motor that drives a shaft with two sharp blades at up to 8,500 rpm. This enables extremely fast, clean and smooth material removal without tearing the wood fibres, regardless of whether you are working on soft or hard wood.
Precise adjustment of the planing depth
With the DED7813 table planer, you have complete control over your work. The thickness of the collected material, or the depth of cut, can be easily and precisely adjusted in the range from 0.5 mm to 2 mm. This allows you to both roughly remove large amounts of wood and achieve an extremely fine surface finish.
Clean working environment with efficient chip extraction
Woodworking generates a large amount of sawdust and chips, which can hinder work and reduce accuracy. This table planer is equipped with a specialized chip remover (blade guard with extraction attachment). This system ensures smooth operation of the machine without the risk of the blades clogging or blocking during work, while keeping your workshop clean.
Safety and stability come first
Safety when working with woodworking machines is of paramount importance. The device is equipped with an overload switch, which automatically switches off the device in case of overheating or excessive load on the motor, thus preventing damage to the motor. The robust housing with a total weight of 32 kg ensures exceptional stability and minimal vibrations during work, which directly affects the greater precision of planing.
Flexible and robust guide
The machine features a high-quality longitudinal guide measuring 540x210 mm, which offers a wide tilt range from 90 to 130 degrees. This allows for extremely easy and precise planing of angled edges and the production of various grooves and bevels.

Technical specifications and product features
See detailed technical data below that confirms the performance and versatility of this tabletop planer:

Motor power: 1400 W - ensures high productivity and stable operation
Voltage and frequency: 230V / 50 Hz - suitable for standard home network
Shaft rotation speed: 8,500 rpm – for perfectly smooth machined surfaces
Number of blades on the shaft: 2 - high-quality blades for long-lasting sharpness and precise cutting
Maximum planing width: 204 mm – ideal for most standard boards and laths
Maximum material height: 210 mm – allows processing of larger wooden pieces
Trimming thickness setting (cut): 0.5 - 2 mm
Worktable size: 745x210 mm – spacious table for stable workpiece guidance
Dimensions of the longitudinal guide: 540x210 mm
Guide rail tilt range: 90 - 130 degrees – for easy angle planing
Machine weight: 32 kg – massive construction that prevents vibrations
Safety features: Overload safety switch, blade guard with dust extraction connection


Demonstration videos of the machine in operation
See the DED7813 table planer in action and see for yourself its ease of use, stability and exceptional woodworking results:
Presentation of the machine's operation (Video 1):
Watch a video demonstration of the DED7813 planer in action
Detailed overview and practical application (Video 2):
Watch a hands-on demonstration of machine use and setup

Frequently Asked Questions (FAQ)
1. What is the maximum width and height of wood I can process with this machine?
The planer allows the processing of wooden elements up to a maximum width of 204 mm. The maximum height of the material that the machine can accept during processing is 210 mm, which covers most standard carpentry projects.
2. How does overload protection work?
The machine has a special overload safety switch built in. If too much resistance is encountered during work (e.g. pushing too hard wood too quickly or cutting too deep) or if the motor overheats, the switch automatically switches off the device. This effectively prevents motor damage and extends the life of the machine.
3. Can I connect a vacuum cleaner to the machine to extract sawdust?
Yes, the machine is equipped with a special blade guard that includes an integrated connection for the extraction (suction) of chips and sawdust. You can easily connect a workshop vacuum cleaner or a dedicated extraction device to this connection, which prevents the blades from clogging and keeps the work surface clean.


Responsible persons:
DEDRA - Dedra-Exim Sp. z o. o. ul. 3 May St. 8, 05-800 Pruszków, Poland, sklep@dedra.pl (+48)22 738 39 89
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Place the machine on a stable and flat work surface and check that it is securely fastened.
• Before planing, set the desired cutting depth.

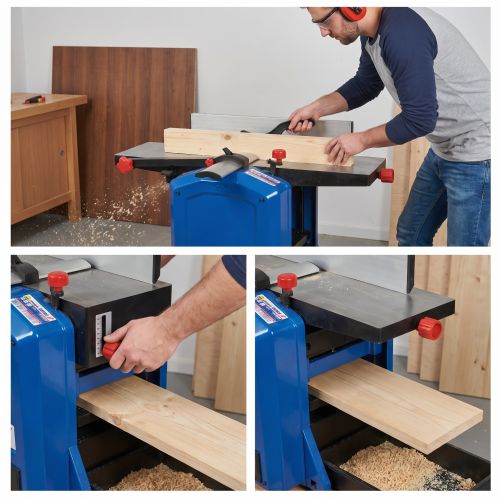

• Place the wood on the table and guide it evenly through the machine.
• For larger material removals, make multiple passes instead of one deep cut.
• Connect a suitable vacuum cleaner to remove the shavings.
• After work, turn off the machine, wait for the blades to stop completely and remove any wood debris.

Useful tips for work:
• Remove nails, screws and other metal objects from the wood before planing.
• For warped or very uneven wood, start with a small removal and gradually level the surface.
• Support long pieces of wood in front of and behind the machine to prevent them from tilting during the passage.
• For a nicer finish, make a final pass with a small amount of material removal.
• Regularly remove shavings by vacuuming to prevent them from accumulating around the outlet.
• When processing several pieces in series, check the settings on a scrap piece of wood, then continue with the workpieces.

Warnings:
• Disconnect the machine from the power supply before adjusting, cleaning or changing the blades.
• Never reach your hands into the blades or the wood feeding area.
• Wear safety glasses and hearing protection when working.
• Do not force the wood through the machine.
• Do not use the woodworking machine with nails, screws or other metal parts.
• After switching off, wait until the blades have come to a complete stop before leaving the machine.

Same summary

The 204mm 1400W bench planer is suitable for DIYers who need more power when working with a variety of wood types. The greater planing depth (3mm or more) makes the tool useful for faster material removal and working on larger or harder pieces, but may be less suitable for those looking for the finest finish. The classic motor requires a little more maintenance with more intensive use, but offers a solid compromise between performance and affordability. The model is versatile enough for furniture, frame and door repairs, but is ideal for users with occasional to moderately demanding projects who value clear adjustability and stable power.

Recommendation source: Enaa guides and team experiences.

User view

The typical user of this table planer is a home hobbyist or small workshop owner who often processes furniture, prepares board edges or performs basic repairs around the house. Due to the appropriate power and planing depth, it is an excellent choice for those who repeatedly process larger or harder pieces of wood and want practicality and easy handling.

Many users choose Dedra products because of the diverse range of garden and hand tools and the reputation the brand has among home craftsmen and DIY project enthusiasts.

Why buy at Enaa

When shopping at Enaa, you can choose from proven models from renowned brands, and you will also have access to a professional team with practical experience in the field of garden and hand tools, who will always listen to your questions and help you choose the most suitable machine for your needs.

Answers to frequently asked questions

What types of wood is this planer suitable for?

With its 1400 W power and the ability to plan 3 mm or more, the planer is suitable for softer and harder wood, such as pine, beech or oak, and for processing larger surfaces in home projects.

Is operating the machine difficult for beginners?

Handling is not demanding and allows enough adjustability for ease of use, but we recommend basic knowledge of safety procedures when working with power tools.

What kind of maintenance does a classic engine need?

With a classic engine, it is recommended to regularly clean the machine and check the condition of the blades, as well as occasionally clean the engine compartment, especially if used more frequently or for longer periods.

Is the device suitable for fine finishing?

Due to the greater planing depth, the machine is particularly suitable for rapid material removal, while for a perfectly fine finished surface, we recommend using a secondary tool or finishing operations with a grinder.

How heavy is this model compared to others?

The exact weight may vary slightly depending on the model, but it is usually in the range of compact table planers, which allows for stable and safe work at home or in a small workshop.

Description updated: April 2026
