1010W wall sanding machine - round + triangular head and case DEDRA DED7763
Are you looking for a professional, efficient and versatile solution for sanding wall and ceiling surfaces? The DEDRA DED7763 1010W wall sander is a top-of-the-line tool designed for drywallers, home renovations and professional painters. This highly versatile sander (the so-called "giraffe" or hand-held wall sander) combines high performance, ergonomic design and innovative technology of two interchangeable heads (round and triangular), allowing you to perfectly treat every corner of the room.
The DED7763 model features a direct drive with a motor on the head, which ensures optimal weight distribution, greater stability during work and an extremely long service life without unnecessary wearing parts such as drive cables or moving shafts. The set also includes a practical transport case and extensive equipment, meaning the device is ready to work immediately.
---
Why choose the DEDRA DED7763 grinder? Main advantages and benefits

2-in-1 head system for maximum versatility: Forget about buying multiple devices. With the quick-change heads, you can easily switch between a round head for fast sanding of large, flat surfaces and a triangular oscillating head, which is specially designed for precise sanding of hard-to-reach edges, corners and joints.
Direct drive on the head: The motor is mounted directly on the sanding head. This means direct power transmission to the sanding plate, less vibration, better balance of the device and the absence of delicate drive cables that often break in cheaper models.
Dust-free work with integrated extraction: The device has its own built-in dust extraction system that directs the dust directly into the included dust bag. Work will be cleaner, safer for your respiratory system and the environment, without the need to connect an expensive external industrial vacuum cleaner.
Infinitely variable speed control: With electronic speed control from 1000 to 1950 revolutions per minute, you can fully adapt the operation of the device to the material you are working on - from gently sanding plasterboard to removing harder layers of paint or adhesives.
Flexible and adaptable head: The tilting head mechanism allows the sanding disc to adapt perfectly to the surface at any angle – whether you are sanding a high wall, ceiling or floor.

---
Technical specifications and product features
The DEDRA DED7763 sander is designed with durability and precision in mind. Below are the key technical data that confirm its superior performance:

Model: DED7763
Device power: 1010 W (provides constant power even under heavy loads)
Round plate diameter: 225 mm (ideal for quickly processing large wall surfaces)
Triangular adapter dimension: 285 mm (perfect size for grinding corners)
Operating speed: 1000 - 1950 revolutions per minute (rpm)
Electronic speed control: Yes (easy adjustment with a button)
Fastening system: Velcro (fastening the sandpaper to the hedgehog for quick change)
Dust extraction system: Yes (integrated system with bag)
Changing heads: Easy and quick changes using clips on the handle

---
Versatile use on various materials
This multi-purpose sander is suitable for a wide range of drywall and renovation jobs. Using the appropriate grit sandpaper of your choice, you can use the device for:

Sanding of plasterboard (gypsum boards) and gypsum plasters.
Smoothing and sanding wooden surfaces before further processing.
Effective removal of old layers of paint, varnish or wallpaper paste from plaster and metal surfaces.
Finishing joints and joints between panels using a triangular head.

Warning: For optimal results and safety, the surfaces you are sanding must be completely dry.
---

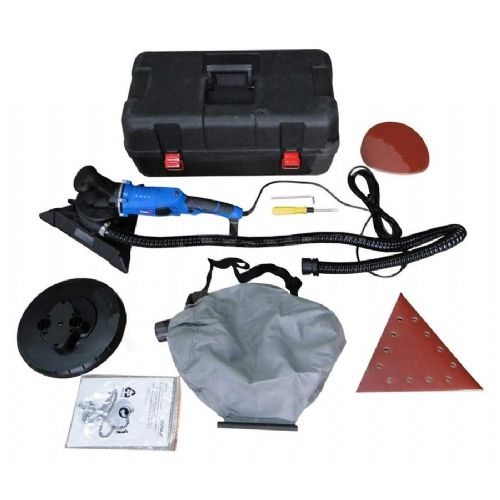

What does the package contain (kit contents)?
Upon purchase, you receive the entire set, stored in a robust case that allows for safe transport and organized storage of the tools:

1x Grinding machine DEDRA DED7763 (1010W)
1x Round grinding head (diameter 225 mm)
1x Triangular swing head (dimension 285 mm)
1x Set of quality sanding discs (12 pieces)
1x Dust collection bag
1x Flexible hose (length 1.5 m)
1x Allen key
1x Screwdriver
1x Replacement electrographite motor brushes
1x Durable transport case

---
Frequently Asked Questions (FAQ)
1. Can I connect this sander to an external industrial vacuum cleaner?
No, the DEDRA DED7763 sander is designed with its own integrated dust extraction system, which discharges the dust directly through the supplied flexible hose into a dedicated dust bag. The device is not intended for use with external vacuum cleaners, which means you do not need additional expensive suction equipment for smooth and clean work.
2. How quickly and easily are the round and triangular heads replaced?
Changing heads is extremely quick and easy. Thanks to the innovative system with clips on the handle, you don't need any complicated tools. You can simply unclip the head, swap it with another one and re-clip it, which only takes a few seconds while you're working.
3. What is the advantage of a motor mounted directly on the grinder head?
Mounting the motor directly on the grinding head offers several key advantages: it provides direct power transmission without losses, improves weight distribution for easier guidance on the wall, and eliminates the need for drive cables or moving shafts (common in classic "giraffes") that wear out or get damaged quickly. This means significantly lower maintenance costs.


Responsible persons:
DEDRA - Dedra-Exim Sp. z o. o. ul. 3 May St. 8, 05-800 Pruszków, Poland, sklep@dedra.pl (+48)22 738 39 89
Distributor for Slovenia: Haloorodje.si, Online Sales, Rok Groznik sp, Podturn 42, 8350 Dolenjske Toplice, info@haloorodje.si, +38669731944, Slovenia
Product origin: China

Instructions for using the product:
• Select the appropriate grinding head and install it correctly.
• Connect the suction system, if available.
• Connect the machine to a suitable electrical supply.
• Turn on the machine and sand using even movements without excessive pressure.
• After finishing work, turn off, unplug and clean the machine.

Useful tips for work:
• Use the round head for larger areas and the triangular head for edges and corners.
• Choose sandpaper based on the type of surface and the desired result.
• Use a vacuum cleaner attachment to reduce dust.
• Regularly check the wear of the sandpaper and replace it if necessary.

Warnings:
⚠️ Always wear safety glasses and a dust mask when working.
⚠️ Before changing the sandpaper or head, turn off the machine and unplug it from the power supply.
⚠️ Do not use a damaged machine or grinding accessory.
⚠️ Be careful of electrical cables and other wiring in the wall.
⚠️ Keep out of reach of children.

Same summary

The 1010W wall sander with a combination of round and triangular heads is suitable for home users and anyone who regularly renovates rooms or performs less demanding painting and drywall work. The disc diameter of over 150 mm allows for efficient processing of larger surfaces, while the triangular head makes it easier to work on edges and corners. The motor power is sufficient for most common projects in the home, but could be a limitation for very demanding building materials or requirements for the fastest material removal. The included case makes it convenient to carry, especially for those who often carry out work in different locations.

Recommendation source: Enaa guides and team experiences.

User view

This sander is most often chosen by users who do their own renovations or who often have to sand walls, ceilings or prepare surfaces for paint in their household. It is considered a practical solution for anyone who wants to balance productivity on larger surfaces while maintaining the ability to work precisely in corners or along edges.

Dedra brand products are known among home craftsmen for offering ease of use and solid quality for the intended purpose, which is especially important for those who want to use the tool for a long time without complicated adjustments.

Why buy at Enaa

On Enaa, you can find professional information for products in the Grinders and Polishers category, making it easier for you to compare tools based on the type of work or material, while always having a clear overview of renowned brands such as Dedra. The platform allows consumers to quickly find the right solution for their own needs and choose a device without unnecessary risk of making the wrong choice.

Answers to frequently asked questions

What materials is this sanding machine best suited for?

The machine is best suited for sanding wall and ceiling surfaces made of plaster, drywall or classic wall materials. It is not specifically intended for rough sanding concrete or metal.

Can I switch between the round and triangular heads depending on my needs?

Yes, switching between the round and triangular heads allows for more efficient processing of larger flat surfaces or corners, which is convenient for different types of work.

Which sandpaper is suitable for use with this machine?

Sandpaper with a diameter of over 150 mm is best for the round head and the corresponding triangular attachments for details; choose the grit according to the required surface finish.

Is the machine also suitable for smaller DIY projects?

Yes, the combination of two heads and moderate power will make making or renovating furniture, shelves or small walls a pleasant experience even for less experienced craftsmen.

Is the machine complicated to use or clean?

The machine is easy to use, and regular dust removal and inspection of attachments is sufficient to maintain optimal performance and a longer service life.

Description updated: April 2026
